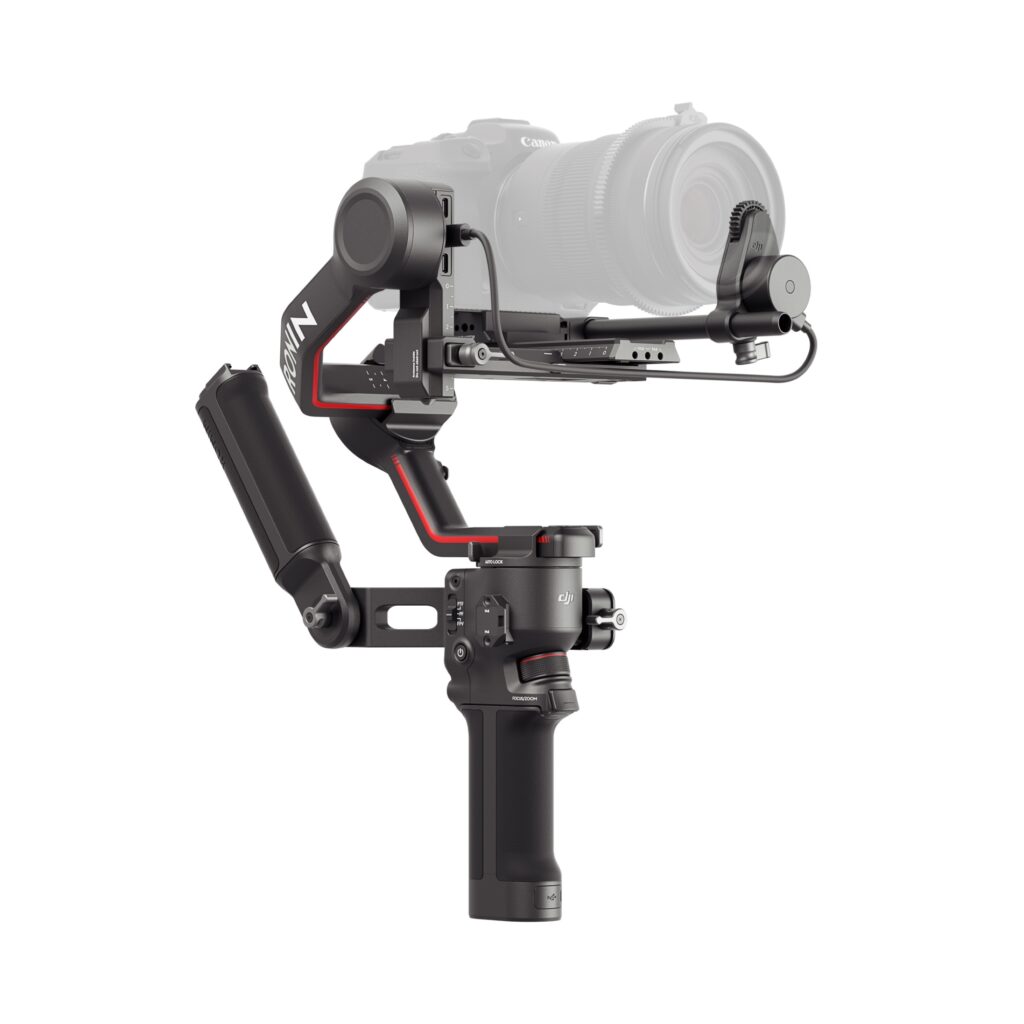

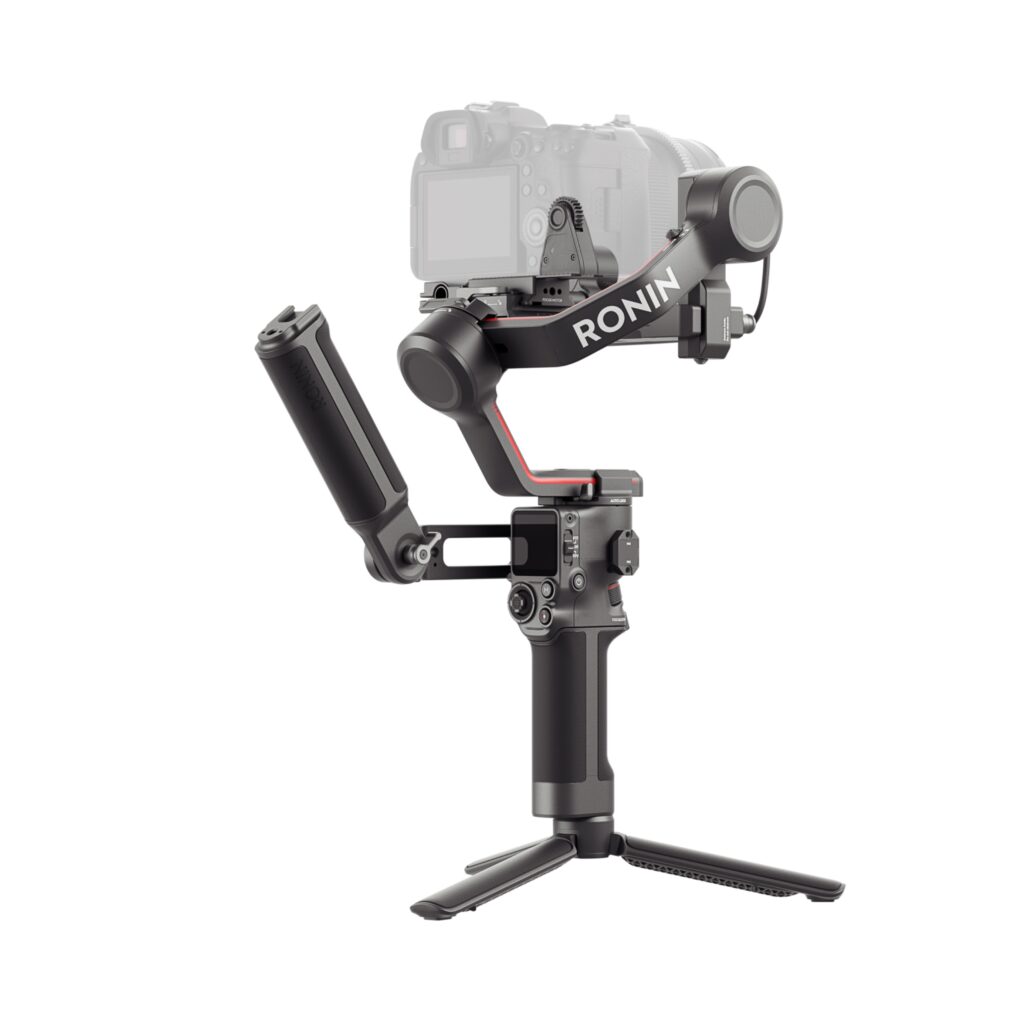

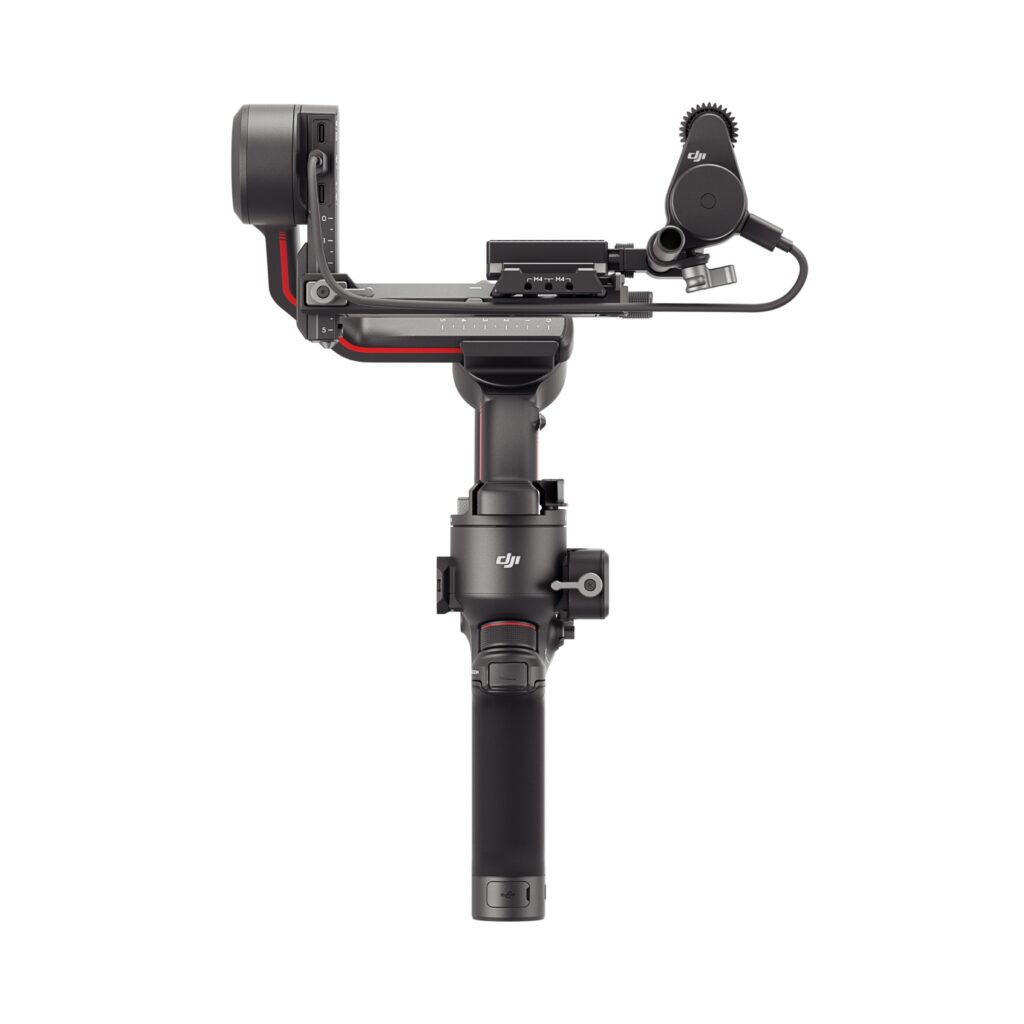

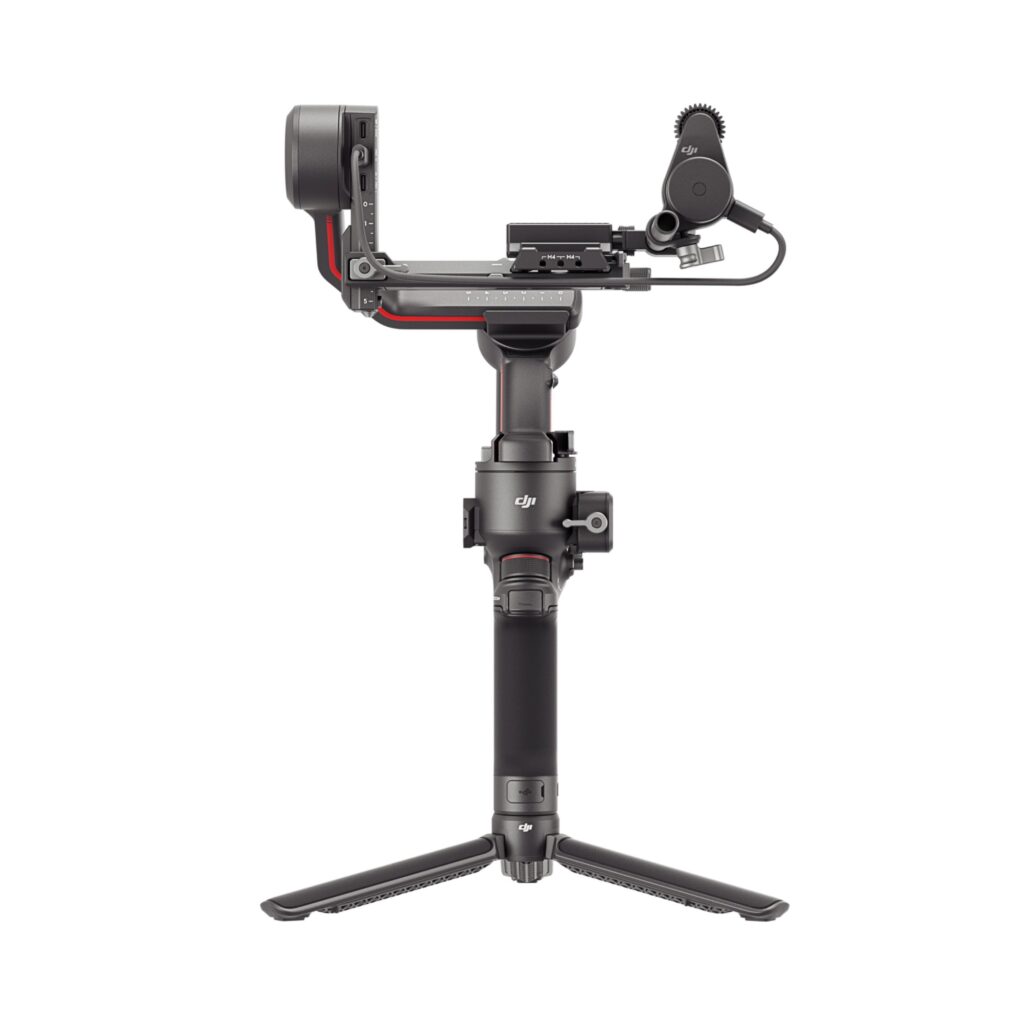

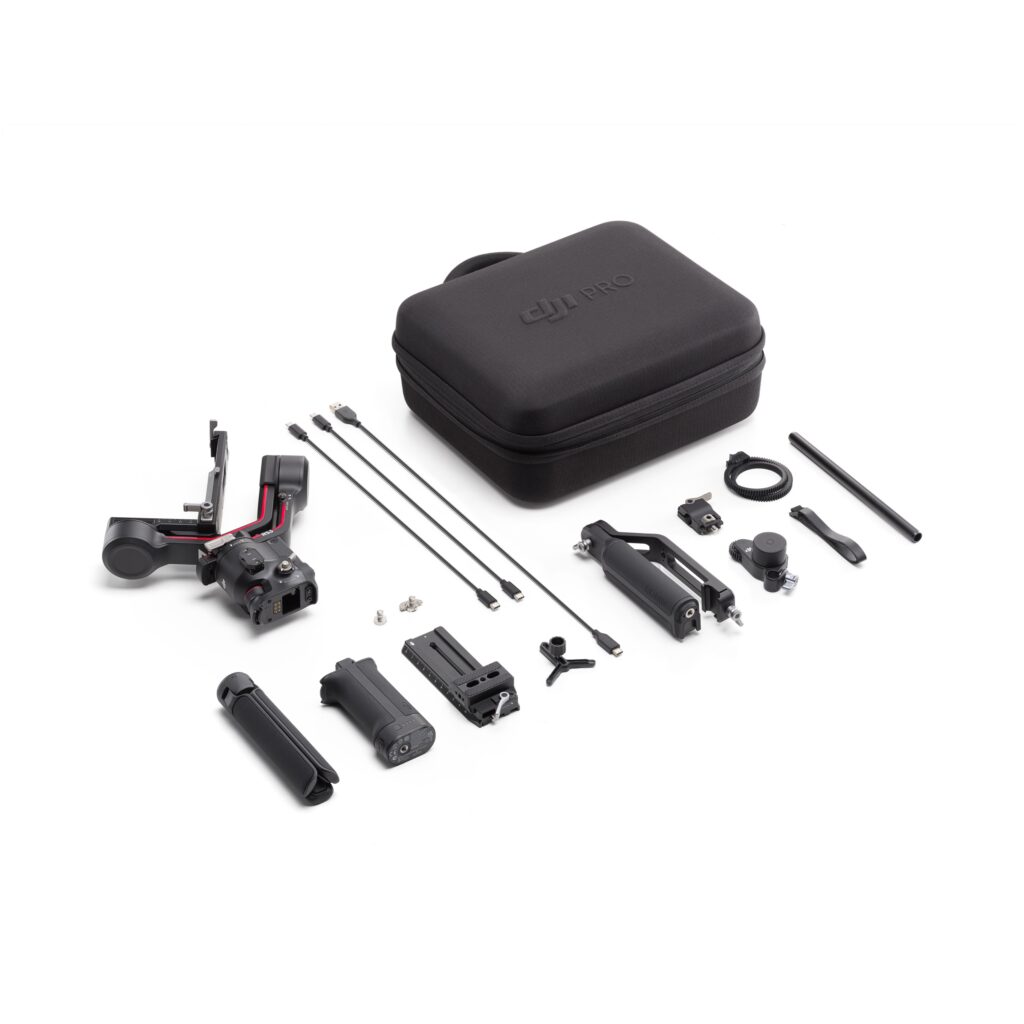

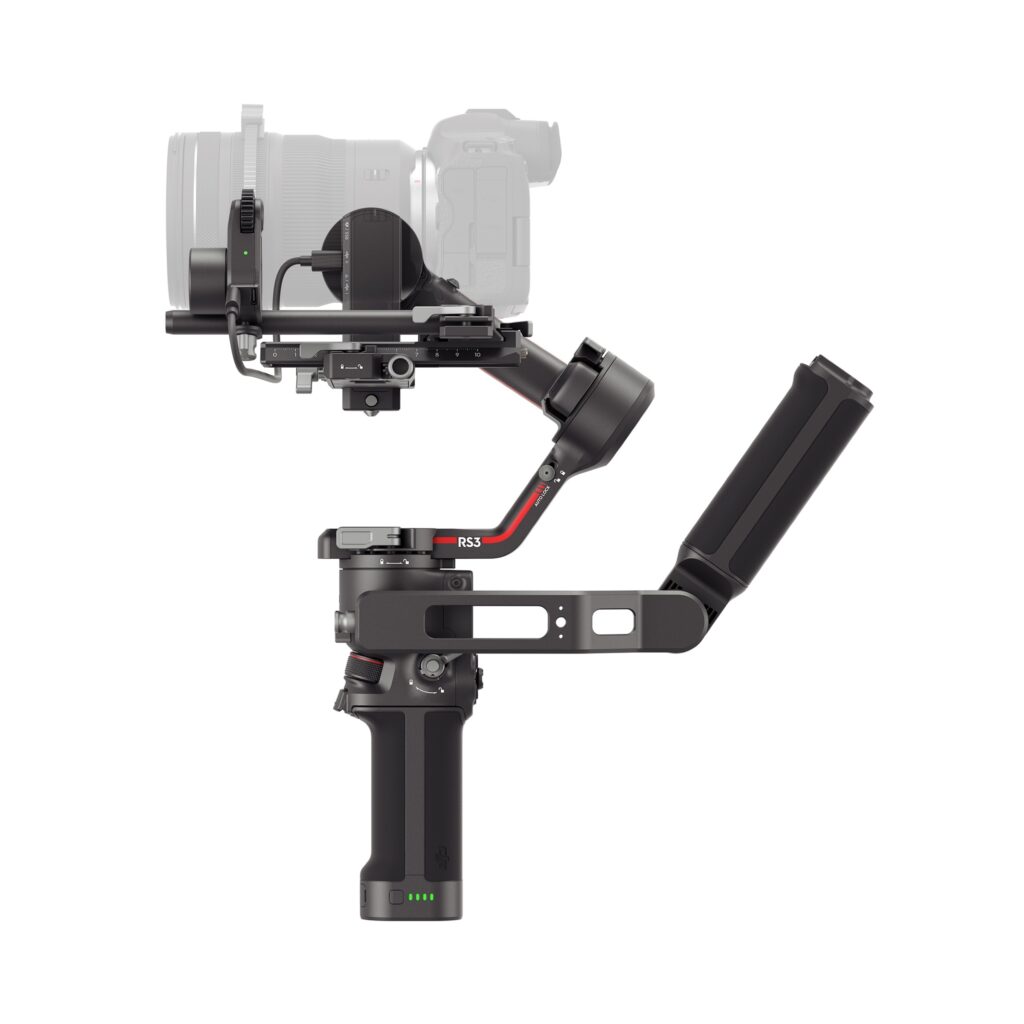

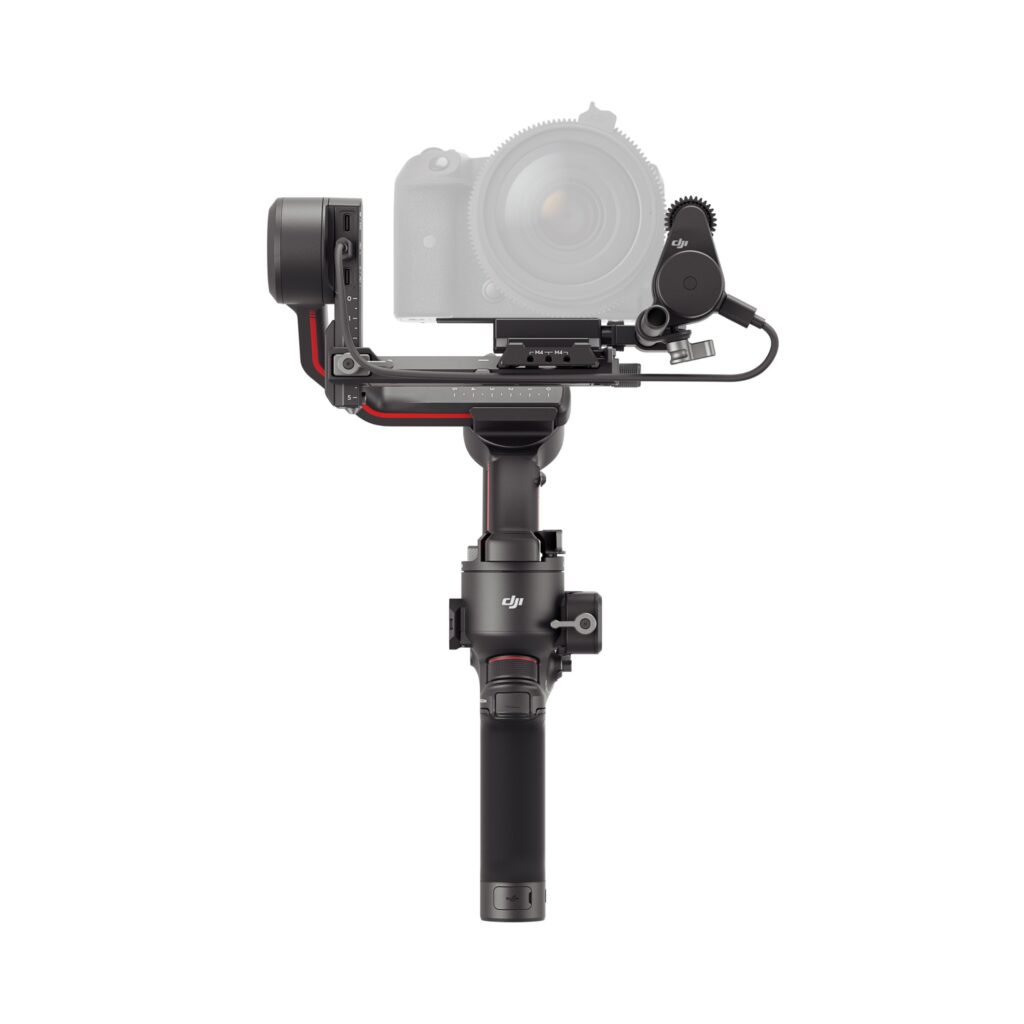

DJI RS 3 Combo Gimbal Stabilizer
With every detail, DJI RS 3 delivers a flexible and efficient shooting experience to solo creators and independent crews. Light and sleek, it provides professional stabilization and efficient control for more creative freedom and endless possibilities. DJI RS 3 is ready when you are
Quick-Release Plates
With dual-layered quick-release plates, mounting a camera onto RS 3 is fast and convenient, with no need to re-balance the gimbal after swapping out a new battery or memory card.
A newly added fine-tuning knob on the tilt axis allows the camera to slide forward or backward with millimeter-grade precision to achieve accurate balancing more easily when changing lenses.
Automated Axis Locks
RS 3 lets you get up and running instantly. When the gimbal is powered off, press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working within seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making transportation and travel significantly more efficient. Press and hold the power button and it will fold and lock automatically.
Wireless Shutter Control
By implementing Dual-Mode Bluetooth, RS 3 supports wireless shutter control, saving time
Excellent Weight-to-Payload Ratio
Weighing only 1.3 kg/2.8 lbs (including gimbal, battery grip, and quick-release plates), RS 3 can be held easily in one hand, while its 3kg/6.6lb load capacity is more than enough to support mainstream cameras, including the Sony A7S3 or Canon R5 with a 24-70mm F2.8 lens.
Beyond Smooth
When you need even smoother results, turn on SuperSmooth mode. RS 3 will increase motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or when 100mm-equivalent focal lenses are used
1.8″ OLED Touchscreen
Compared with the black and white screen of RSC 2, RS 3 is equipped with a 1.8-inch OLED full-color touchscreen with an 80% larger display. It also supports most Ronin app settings, providing intuitive and precise control together with the redesigned user interface
Instant Mode Switching
By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started fast
Customizable Front Dial
Rotating the front dial allows you to control zoom or focus. It can also be customized to control the camera’s shutter, aperture, ISO, [2] or gimbal movements, making it exceptionally convenient for single-handed operation
Monitoring via Smartphone
RS 3 supports the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter) [3] to transmit 1080p/30fps HD live feeds directly to a mobile device. The maximum transmission distance is 200 meters [4] and the end-to-end transmission latency is as low as 60 ms. [4] A smartphone can also be attached to the NATO port on RS 3 with the phone holder for wireless monitoring
Integrated Monitoring and Control
Remotely adjust camera exposure directly in the Ronin app, or control the gimbal with the virtual joystick to get an integrated monitoring and control experience.
Multiple Operation Modes
Vertical Mode
Briefcase mode
Underslung Mode
Transportation and Storage
Specifications
Peripheral
-
Accessory Port
-
NATO Ports
1/4″-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
-
Battery
-
Model: BHX711-3000-7.2V
Type: 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max. Runtime: 12 hours [1]
Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
-
Connections
-
Bluetooth 5.0
Charging Port (USB-C)
-
Ronin App Requirements
-
iOS 11.0 or above
Android 7.0 or above
-
Languages Supported by the Touchscreen
-
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
-
Tested Payload
-
3 kg (6.6 lbs)
-
Maximum Controlled Rotation Speed
-
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
-
Mechanical Range
-
Pan axis: 360° continuous rotation
Roll axis: -95° to +240°
Tilt axis: -112° to +214°
Mechanical & Electrical Properties
-
Operating Frequency
-
2.400-2.484 GHz
-
Bluetooth Transmitter Power
-
<8 dBm
-
Operating Temperature
-
-20° to 45° C (-4° to 113° F)
-
Weight
-
Gimbal: Approx. 990 g (2.18 lbs)
Grip: Approx. 200 g (0.44 lbs)
Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
-
Dimensions
-
Folded: 254×230×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 364×187×170 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)
DJI Ronin Image Transmitter
-
Connections
-
Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)
-
Expansion Port
-
Cold Shoe
-
Operating Frequency
-
2.400-2.484 GHz
5.725-5.850 GHz
-
Weight
-
126 g (0.27 lbs)
-
Dimensions
-
82×63×24 mm (L×W×H)
-
Transmitter Power (EIRP)
-
2.400-2.484 GHz:
<25 dBm (FCC)
<20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:
<25 dBm (FCC/SRRC)
<14 dBm (CE)
-
Battery
-
Capacity: 2970 mAh
-
Compatible Charger: 5V/2A
-
Charging Time: Approx. 2.5 hours
-
Max Battery Life: Approx. 3.5 hours
-
Transmission Range
-
200 m (SRRC/FCC) [2]
100 m (CE) [2]
-
Latency
-
60 ms
-
Operating Current/Voltage
-
900 mA, 3.7V
-
Operating Temperature
-
0° to 45° C (32° to 113° F)
DJI RS 3 Combo Gimbal
