PSDK102S Five-Lens Aerial Oblique Camera

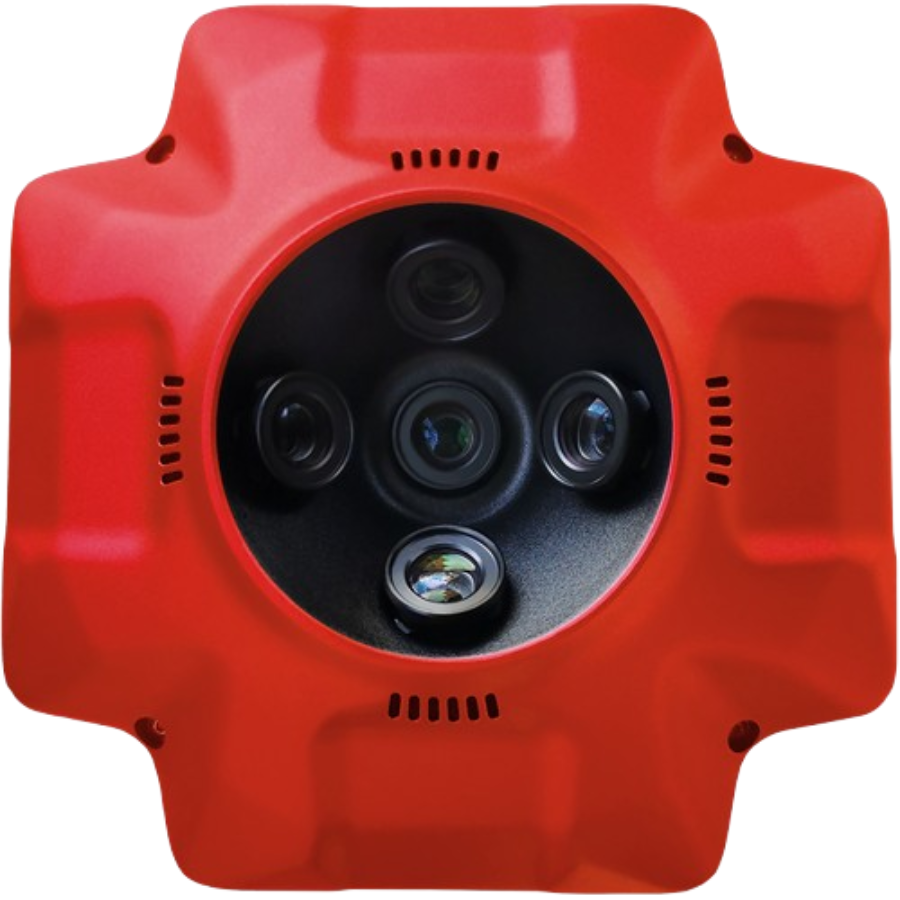

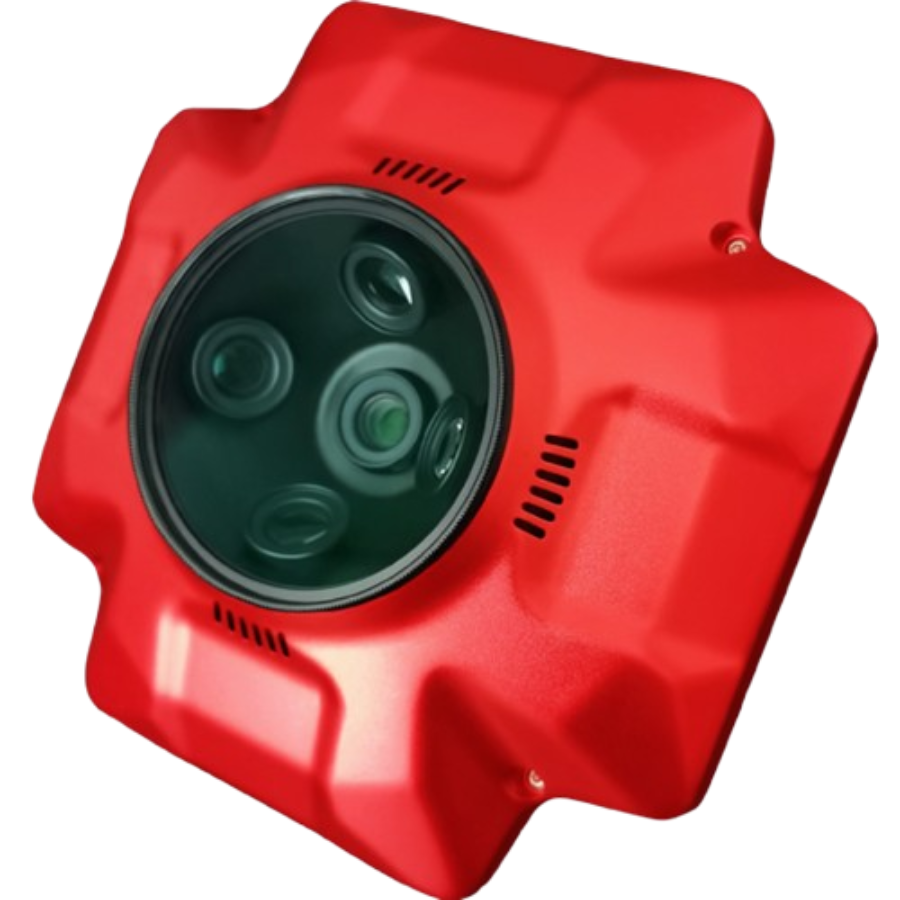

The PSDK102S Five-Lens Aerial Oblique Camera is a state-of-the-art aerial imaging system designed specifically for high-precision 3D mapping, photogrammetry, and land surveying. It features an advanced five-lens configuration, with one vertical and four oblique lenses, allowing it to capture images from multiple angles simultaneously. This unique design significantly improves the accuracy and efficiency of topographic mapping, urban planning, and infrastructure monitoring.

Equipped with high-resolution 24MP CMOS sensors, the PSDK102S delivers exceptional image clarity, ensuring that even the smallest details are preserved. The camera’s optimized structure reduces wind resistance, providing better flight stability and improved efficiency, making it ideal for integration with DJI UAVs and other professional drone platforms.

One of the key strengths of the PSDK102S is its advanced heat dissipation system, which prevents overheating and enables extended operation in demanding environments. Additionally, its RTK and GNSS support ensures precise georeferencing, minimizing positional errors in aerial surveying and 3D reconstruction projects.

Designed for seamless compatibility with multiple UAV systems, the PSDK102S offers real-time image processing, allowing users to collect high-quality aerial data quickly and efficiently. Its high-speed storage system ensures smooth data handling, making it perfect for large-scale mapping operations.

With its durable build, enhanced structural integrity, and weather-resistant design, the PSDK102S is a reliable solution for GIS mapping, construction site analysis, forestry management, and environmental monitoring. Whether used by professionals in civil engineering, urban planning, or disaster response, this camera system provides the precision and efficiency required for advanced aerial imaging applications.

• Five-Lens Configuration – Captures oblique images from different angles for precise 3D modeling.
• High Resolution – Equipped with 24MP sensors for sharp, detailed images.
• Lightweight and Compact – Reduces wind resistance and enhances flight stability.
• Advanced Heat Dissipation – Optimized structure to prevent overheating.
• Real-Time Image Processing – Fast image capture and efficient data storage.
• Strong Structural Build – Designed for long-term aerial operations.
• Seamless Drone Compatibility – Works with multiple UAV platforms, especially DJI drones.
• Intelligent Power Management – Enhances operational efficiency and reduces power consumption.
• Enhanced Georeferencing – Supports high-precision GNSS and RTK systems.
• Weather Resistance – Durable against environmental conditions.

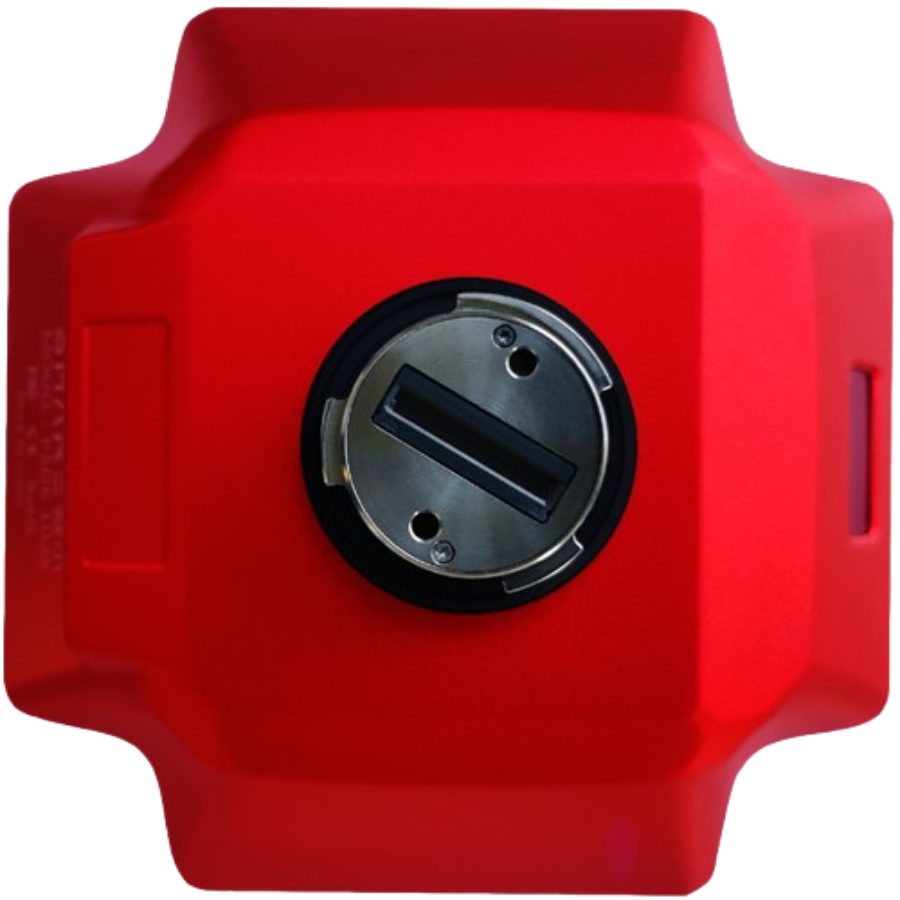

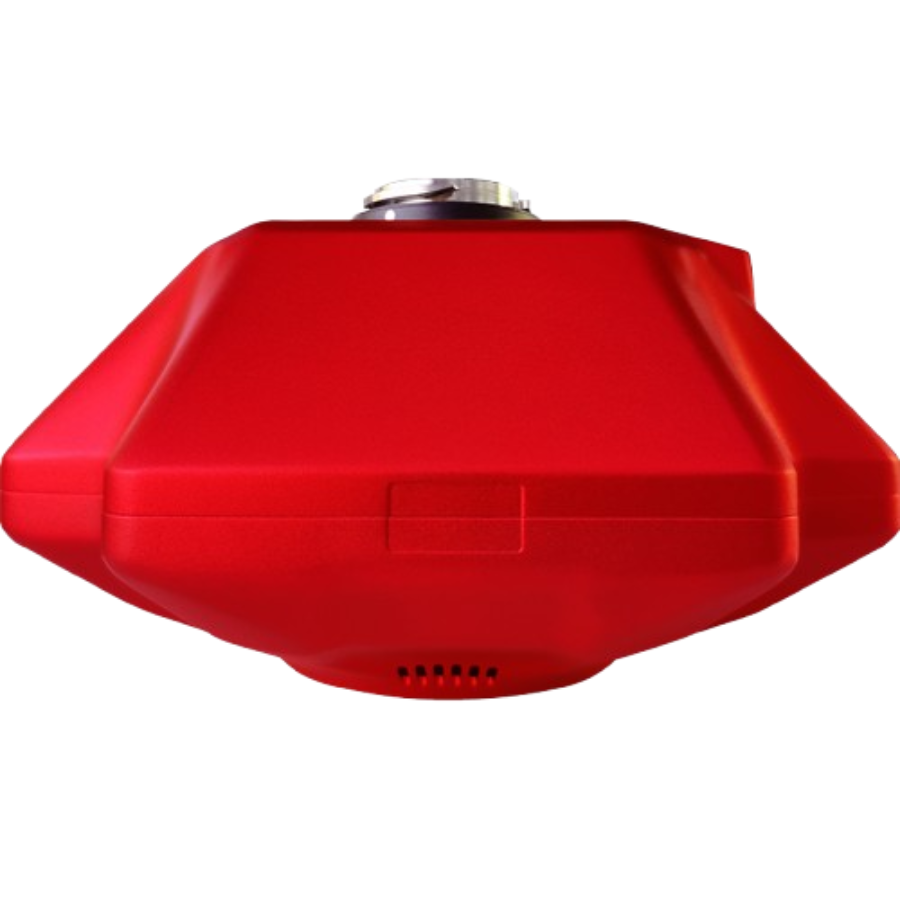

PSDK 102S five-lens aerial oblique camera, designed by SHARE UAV, is a new generation mapping camera can realize drone surveying and mapping with no GCPs used. Camera is seamless docking with DJI Matrice 300 RTK through SkyPort. Using CNC designed housing makes PSDK 102S have better heat dissipation, smaller wind resistance coefficient, stronger structure, which is more conducive to aerial survey flight. Besides, PSDK 102S also has intelligent self-test, one-key reset, intelligent heat dissipation, real-time image transmission and other functions.

PSDK102S Five-Lens Aerial Oblique Camera

PSDK 102S five-lens aerial oblique camera, designed by SHARE UAV, is a new generation mapping camera can realize drone surveying and mapping with no GCPs used. Camera is seamless docking with DJI Matrice 300 RTK through SkyPort. Using CNC designed housing makes PSDK 102S have better heat dissipation, smaller wind resistance coefficient, stronger structure, which is more conducive to aerial survey flight. Besides, PSDK 102S also has intelligent self-test, one-key reset, intelligent heat dissipation, real-time image transmission and other functions.

PSDK102S Five-Lens Aerial Oblique Camera Applications

Cadastral Surveying: PSDK 102S can realize surevey with no GCPs used, and its independent POS data accurate to 1cm can meet the cadastral surveying and mapping requirements for accuracy.
Topographic Measurement: PSDK 102S has clear imaging and true color reproduction which can provide accurate topographic measurement data and apply it to the ground qualitative exploration, mineral development and river survey and other scenarios.
Planning and Design: In the planning and design of infrastructure construction in smart cities, beautiful rural construction, architecture, water conservancy, transportation, etc., PSDK 102S can provide accurate measurement and mapping data, and generate high-quality 3D models as basic data for later applications.
