Description
DJI Digital FPV System
Reimagine Your FPV World

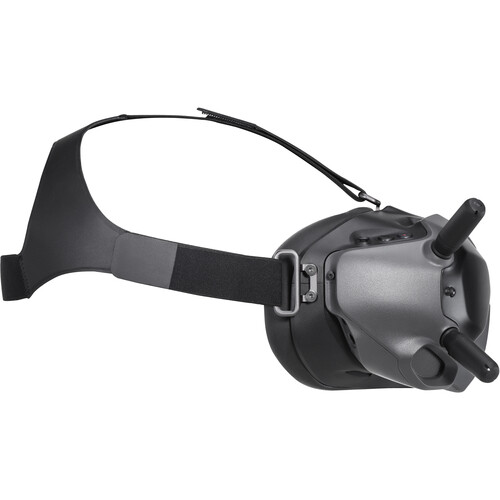

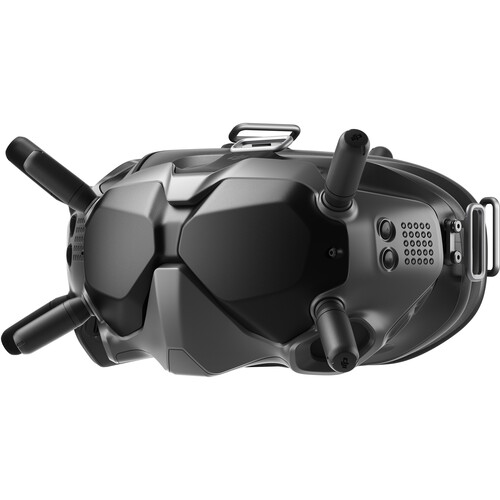

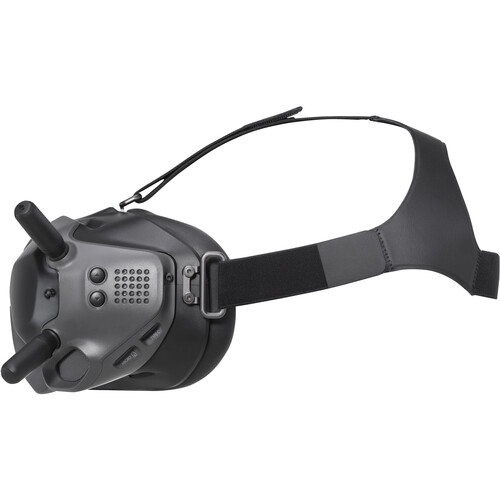

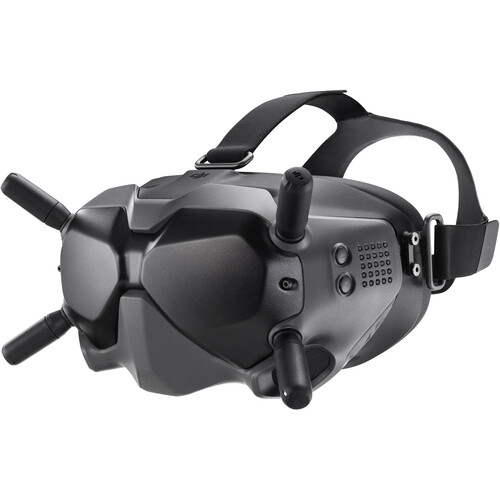

The DJI FPV Goggles V2 immerse you in the thrilling world of drone racing with enhanced visual clarity and comfort. These goggles offer a high-definition view of your drone’s perspective, featuring a stable and clear transmission that allows you to experience flight like never before. With an ergonomic design and adjustable straps, they ensure a comfortable fit for prolonged use. Additionally, the V2 goggles support real-time video transmission and are equipped with powerful technology to minimize latency, making them ideal for competitive FPV racing and casual flying alike. Whether you’re navigating through tight spaces or enjoying panoramic views, the DJI FPV Goggles V2 enhance every flight with stunning visuals and robust performance.
A New Era of FPV Racing: The DJI Digital FPV System features DJI HD Low Latency FPV Transmission. This redefined technology was designed to heighten your FPV experience. Pilots can race more smoothly with a latency within 28 ms while enjoying a crystal-clear view.
720p/120fps Video Transmission: Most analog transmissions provide a latency between 22-35 ms. The DJI HDL FPV Transmission features similar latency rates, but pairs that with a smooth 720p/120fps digital HD live view and a transmission range up to 4km.
Anti-Interference Digital Transmission: The DJI HDL FPV Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility while flying through challenging areas.
28ms Low Latency: DJI’s HDL FPV Transmission technology provides a highly immersive HD viewing experience, featuring a remarkably low minimum end-to-end latency of just 28 milliseconds, enhancing the clarity and responsiveness of your drone racing and aerial videography pursuits.

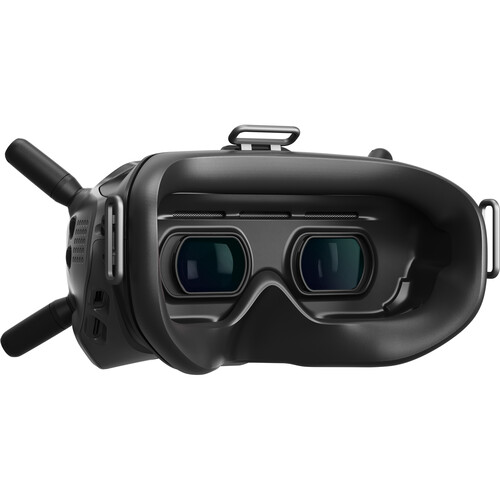

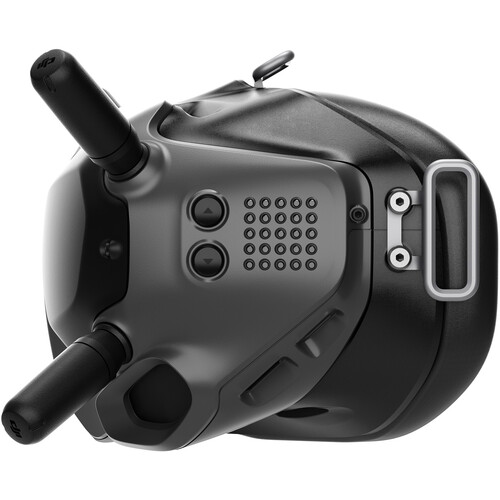

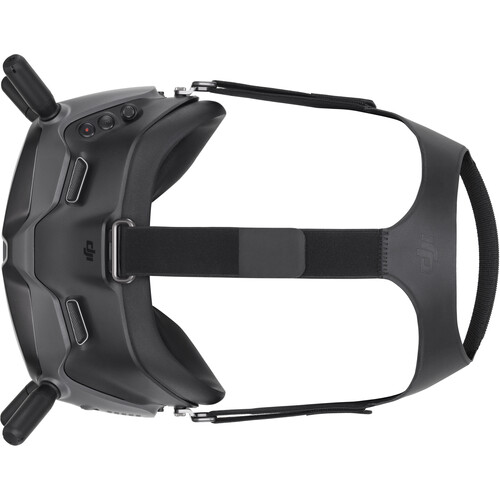

Innovative Design: The DJI FPV Goggles are light, comfortable, and equipped with incredible features, such as multi-antenna technology for stable video transmission. It also includes two screens and two user-friendly channel adjustment buttons, creating an engaging FPV flying experience for the user.
Specifications
General
| DJI FPV Goggles V2 |
| Weight: Approx. 420 g (headband and antennas included) |
| Dimensions: 184×122×110 mm (antennas excluded) |
| 202×126×110 mm (antennas included) |
| Screen Size: 2-inches (×2) |
| Screen Refresh Rate: 144 Hz |
| Communication Frequency: 2.400-2.4835 GHz |
| 5.725-5.850 GHz |
| Transmitter Power (EIRP): 2.400-2.4835 GHz |
| FCC: ≤ 28.5 dBm |
| CE: ≤ 20 dBm |
| SRRC: ≤ 20 dBm |
| MIC: ≤ 20 dBm |
| 5.725-5.850 GHz |
| FCC: ≤ 31.5 dBm |
| CE: ≤ 14 dBm |
| SRRC: ≤ 19 dBm |
| Communication Bandwidth: 40 MHz (Max.) |
| Live View Mode: Low-Latency Mode: 810p/120fps ≤ 28ms* |
| High-Quality Mode: 810p/60fps ≤ 40ms* |
| * A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.” |
| Max Video Bitrate: 50 Mbps |
| Transmission Range: 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Video Format: MP4 (Video format: H.264) |
| Supported Video and Audio Playback Formats: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3） |
| Operating Temperature: 0° to 40° C (32° to 104° F) |
| Power Input: Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries. |
| FOV: 30° to 54°; Image size: 50-100% |
| Interpupillary Distance Range: 58-70 mm |
| Supported microSD: Cards microSD (up to 256 GB) |

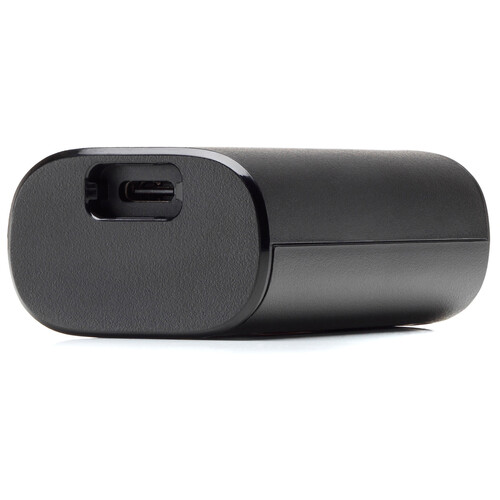

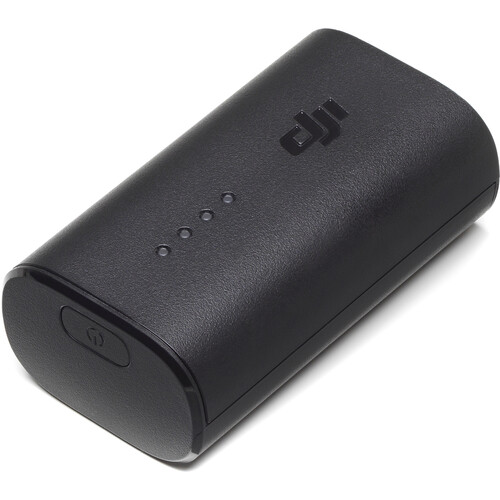

| DJI FPV Goggles Battery |
| Capacity: 1800 mAh |
| Voltage: 9 V (Max.) |
| Type: LiPo 2S |
| Energy: 18 Wh |
| Charging Temperature: 0° to 45° C |
| Max Charging Power: 10 W |
| Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level) |
FAQ's
- What are DJI FPV Goggles V2?
- The DJI FPV Goggles V2 are immersive goggles designed for first-person view (FPV) drone flying, providing a real-time high-definition view from the drone’s perspective.
- What drones are compatible with the DJI FPV Goggles V2?
- The goggles are compatible with DJI’s FPV drones, such as the DJI FPV Drone and other drones that support the DJI Digital FPV System.
- What is the resolution of the display in the DJI FPV Goggles V2?
- The goggles feature a high-definition display with a resolution of 1440×810 pixels per eye, providing a clear and immersive viewing experience.
- What is the field of view (FOV) of the DJI FPV Goggles V2?
- The goggles offer a wide FOV of 142 degrees, allowing pilots to see more of their surroundings while flying.
- How do I connect the DJI FPV Goggles V2 to my drone?
- The goggles can be connected wirelessly to DJI FPV drones using the DJI FPV Air Unit and the DJI FPV Remote Controller.
- What is the latency of the video transmission in the DJI FPV Goggles V2?
- The DJI HDL FPV Transmission technology delivers a minimum end-to-end latency of just 28 milliseconds, ensuring a responsive and immersive flying experience.
- Are the DJI FPV Goggles V2 comfortable to wear?
- Yes, the goggles feature a comfortable and ergonomic design with adjustable straps to ensure a secure and customized fit for extended use.
- Do the DJI FPV Goggles V2 support digital recording?
- Yes, the goggles support digital recording of FPV footage onto an onboard microSD card for later playback or sharing.
- What accessories are included with the DJI FPV Goggles V2?
- The goggles typically come with antennas, a power cable, a USB-C cable, and a foam padding insert for added comfort.
- Where can I purchase the DJI FPV Goggles V2?
- The DJI FPV Goggles V2 can be purchased from authorized DJI dealers, the official DJI website, or other retailers specializing in drone technology and accessories.
