Description

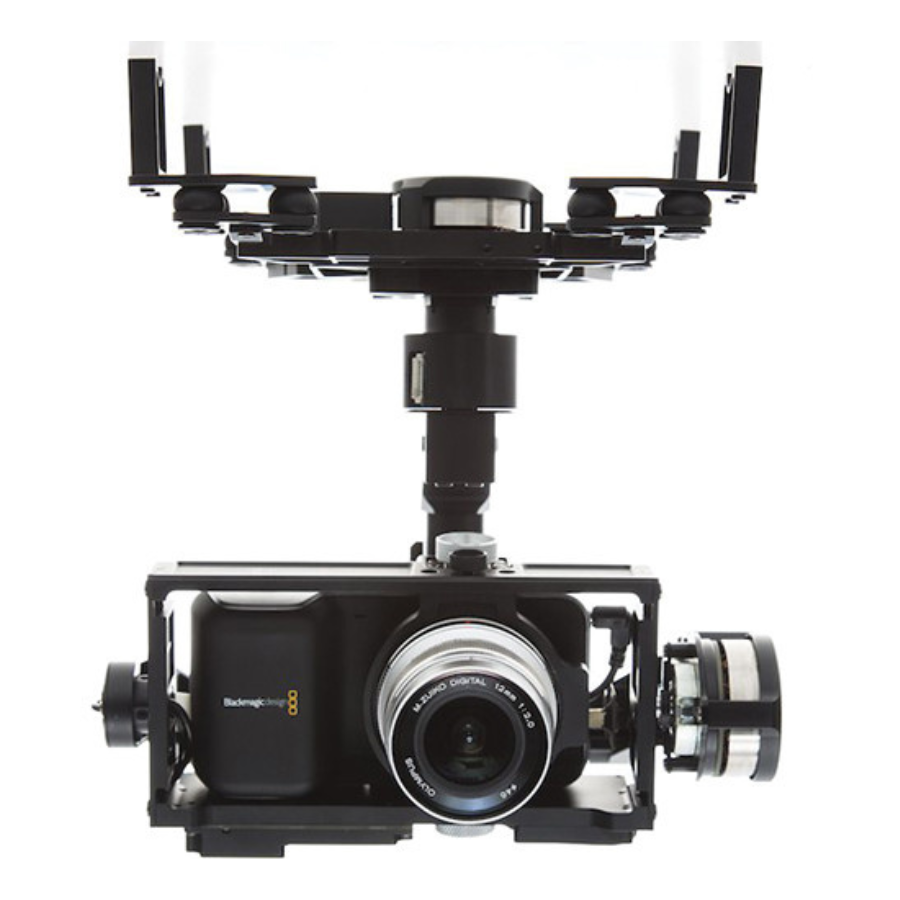

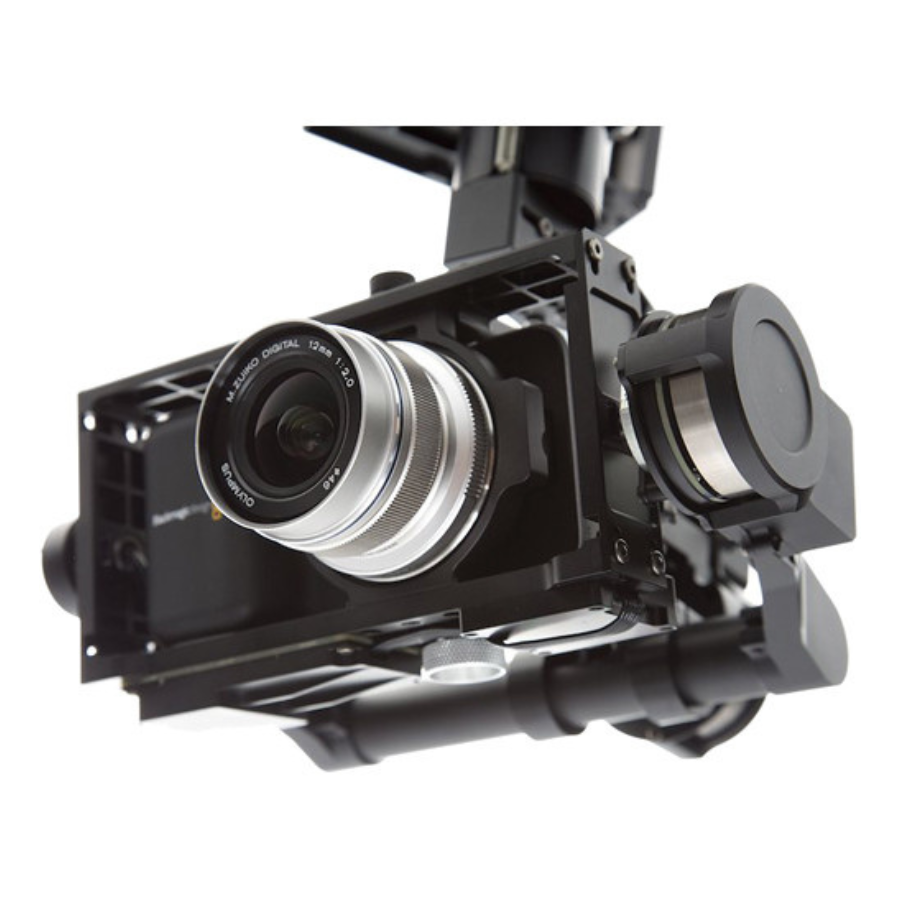

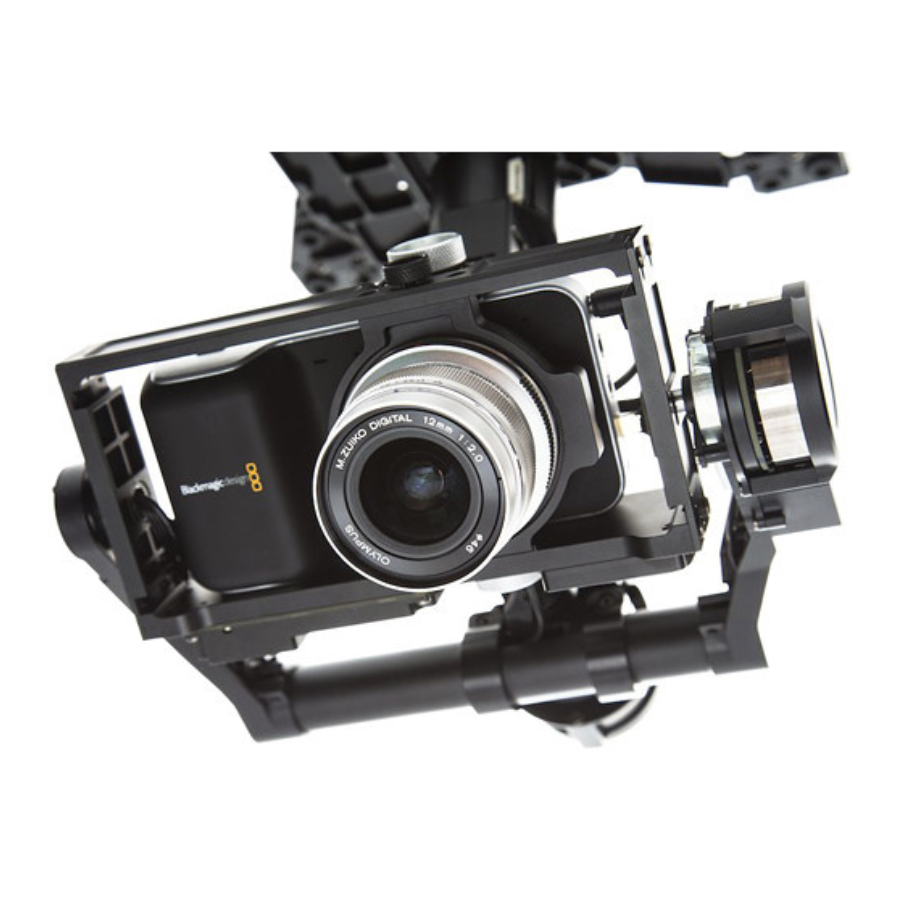

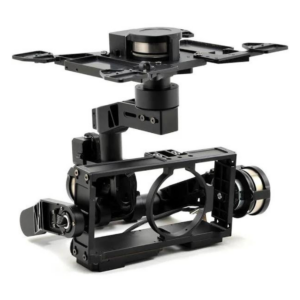

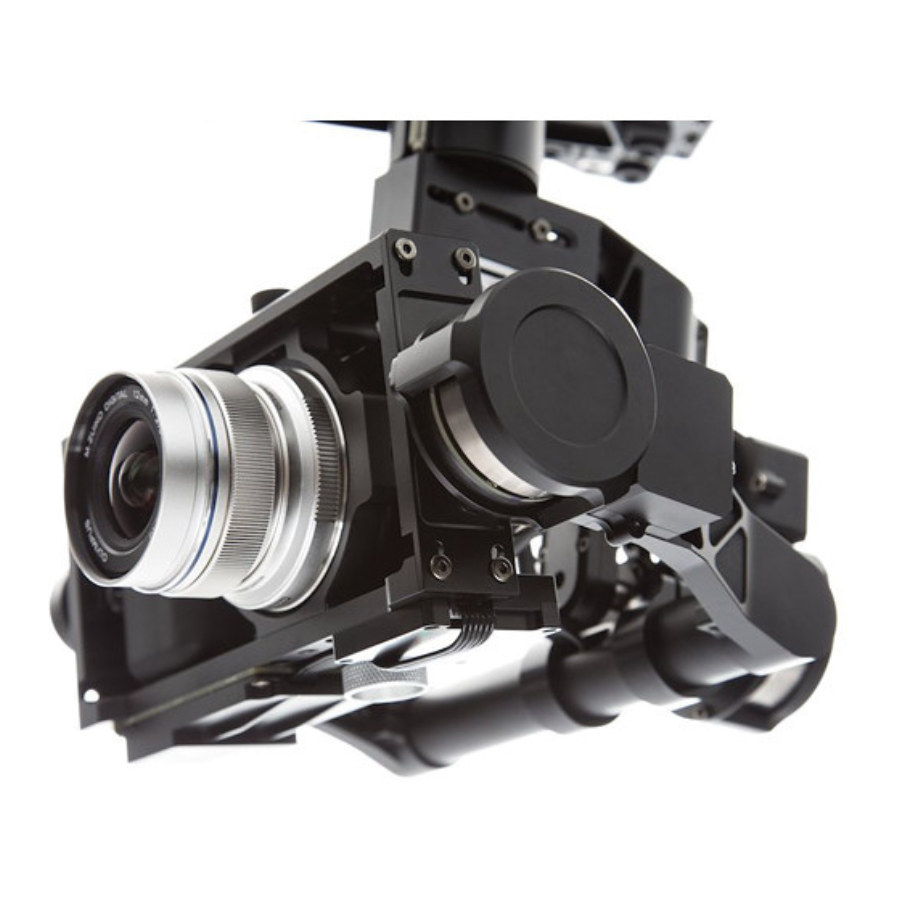

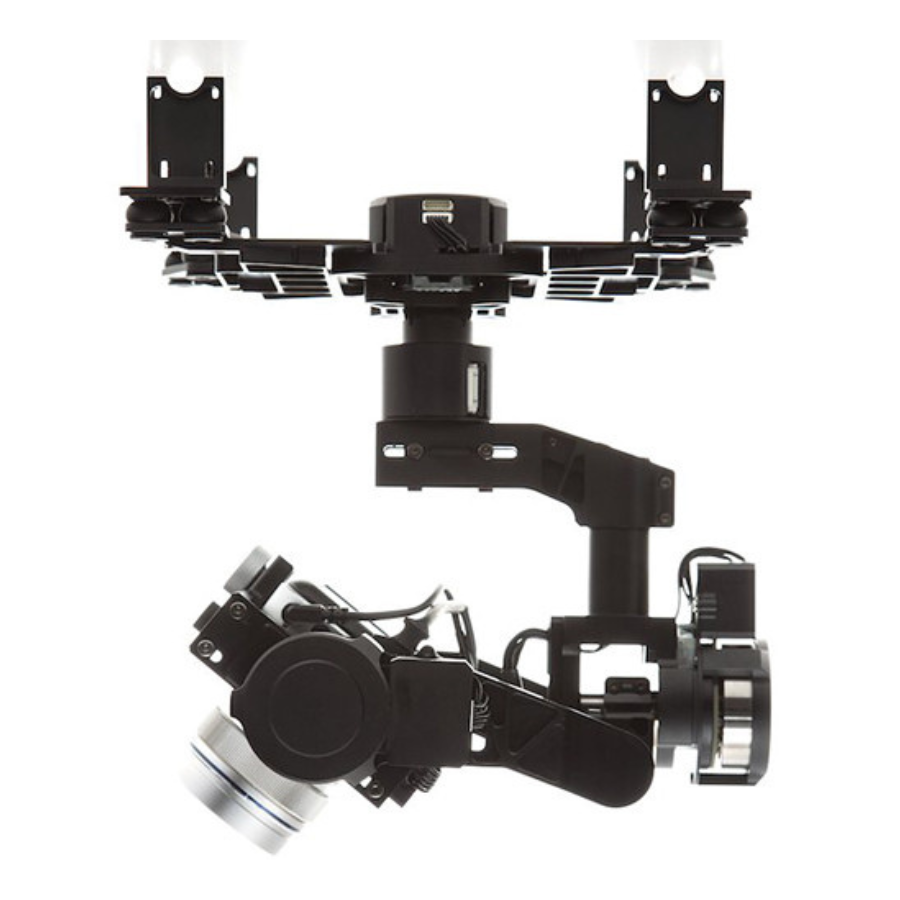

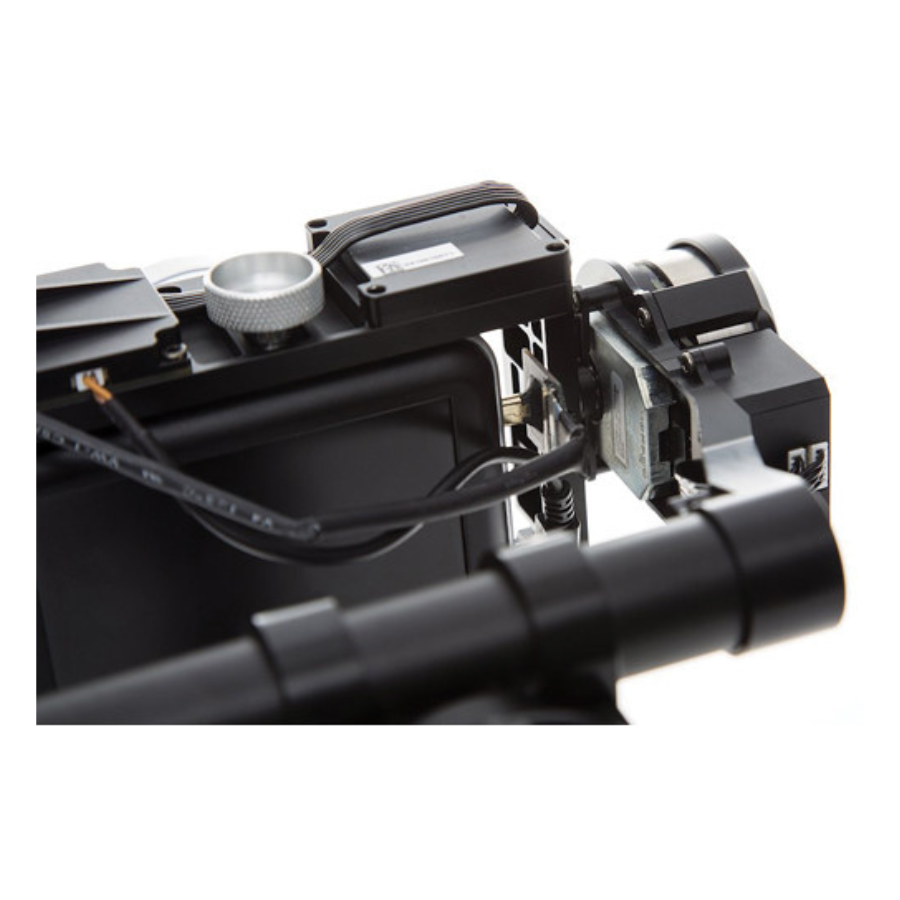

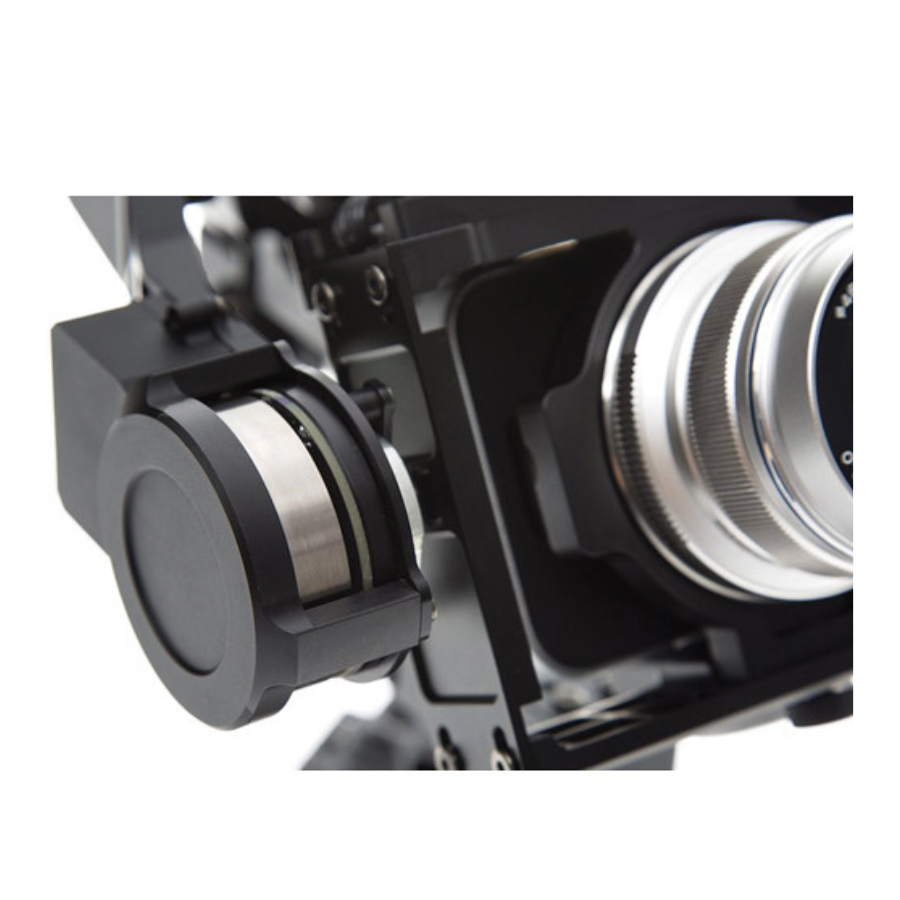

The DJI Zenmuse Z15-BMPCC is a revolutionary 3-axis gimbal specifically designed for the Blackmagic Pocket Cinema Camera (BMPCC), offering filmmakers an unparalleled aerial cinematography experience. With its precision control accuracy of ±0.02°, it ensures incredibly smooth and stable footage, making it perfect for professional-grade film production from the skies. The gimbal features advanced stabilization technology, including 360° continuous rotation on the pan axis, allowing for stunning panoramic shots and dynamic aerial sequences. Designed to integrate seamlessly with DJI’s professional drone platforms, the Zenmuse Z15-BMPCC opens up new possibilities for creative storytelling and breathtaking cinematic vistas. Lightweight and robust, it is engineered for the most demanding shooting conditions, ensuring that filmmakers can capture their vision without compromise.
Specifications
Supported Camera
Blackmagic Pocket Camera
Supported Lens
Olympus M.ZUIKO Digital ED 12mm f/2.0
Control Requirements
At least 4 spare receiver channels
S-Bus/PPM receiver supported
Software Requirements
For Assistant Software: Windows 8, 7, XP SP3 — 32 or 64-bit
Working Current
Static Current: 200 mA at 25 V
Dynamic Current: 400 mA at 25 V
Locked-Rotor Current: 4 A at 25 V
GCU BEC Output
10 A at 12 V
Transmit Power
GCU Wireless Video Transmission: 1 A at 12 V
Controlled Angle Accuracy
±0.01°
Maximum Controlled Rotation Speed
Pan Axis: ±130°/s
Tilt Axis: ±130°/s
Roll Axis ±30°/s
Controlled Rotation Range
Pan Axis Control: ±360° continuous rotation
Tilt Axis Control: +50 to -140°
Roll Axis Control: ±40°
Power Requirements
GCU: 4S to 12 S LiPo (6S if using S800)
Operating Temperature
14 to 122°F (-10 to 50°C)
Dimensions
Gimbal: 9 x 8.3 x 8.3″ (227 x 212 x 210 mm)
GCU: 2.5 x 1.4 x 0.8″ (64.2 x 34.1 x 19.5 mm)
Weight
Gimbal: 2.9 lb (1.3 kg)
GCU: 2.2 oz (63 g)
FAQs for DJI ZENMUSE Z15-BMPCC
1. What camera is the DJI Zenmuse Z15-BMPCC designed for?
The DJI Zenmuse Z15-BMPCC is specifically designed for the Blackmagic Pocket Cinema Camera (BMPCC). It offers precision control and stabilization for this compact camera, making it ideal for aerial cinematography and photography.
2. Can the Z15-BMPCC gimbal be used with other cameras or is it exclusive to the BMPCC?
The Z15-BMPCC gimbal is tailored specifically for the Blackmagic Pocket Cinema Camera. Due to its precise balancing and software integration, it cannot be guaranteed to work with other camera models without potential issues in performance and stability.
3. How do I balance my BMPCC on the Z15-BMPCC gimbal?
Balancing your BMPCC on the Z15 gimbal involves adjusting the camera’s position on the gimbal to ensure it is perfectly centered. This includes tweaking the roll, pitch, and yaw axes adjustments to ensure the camera remains stable and level during flight.
4. What kind of stabilization technology is used in the Zenmuse Z15-BMPCC?
The Zenmuse Z15-BMPCC utilizes a 3-axis stabilization system that corrects unwanted camera movement in real-time. It employs brushless motors that are highly responsive to movements, ensuring smooth and stable footage.
5. How do I control the Z15-BMPCC gimbal during flight?
Control of the gimbal during flight is achieved through a compatible DJI remote controller. You can adjust the camera’s tilt, pan, and roll angles either manually via the controller or through pre-programmed movements using the DJI app.
6. What kind of power source does the Z15-BMPCC gimbal require?
The Z15-BMPCC gimbal is powered through the flight battery of the DJI drone it is mounted on. It does not require an independent power source, making it convenient for extended shooting sessions.
7. Can I use the Z15-BMPCC gimbal for ground shots, or is it only for aerial footage?
While the Z15-BMPCC gimbal is designed primarily for aerial footage with DJI drones, it can also be used for ground shots when mounted on a compatible handheld rig or tripod adapter. This provides versatility for filmmakers looking to achieve stable footage both in the air and on the ground.
8. Is there a way to update the firmware of the Zenmuse Z15-BMPCC?
Yes, firmware updates for the Zenmuse Z15-BMPCC are released periodically to improve performance and add new features. Updates can be applied through the DJI Assistant software available on DJI’s website, which connects the gimbal to a computer.
9. How does the Z15-BMPCC handle wind and high-speed movements?
The Z15-BMPCC is designed to perform well under various conditions, including moderate winds and high-speed movements. Its advanced stabilization system compensates for these factors, ensuring that the footage remains smooth and unaffected by external movements.
10. Can I mount additional accessories on my BMPCC when it’s on the Z15-BMPCC gimbal?
Mounting additional accessories on your BMPCC while it’s on the Z15-BMPCC gimbal is possible, but it’s important to ensure that the added weight does not exceed the gimbal’s maximum payload capacity. Balance adjustments may also be necessary to accommodate the extra weight.
