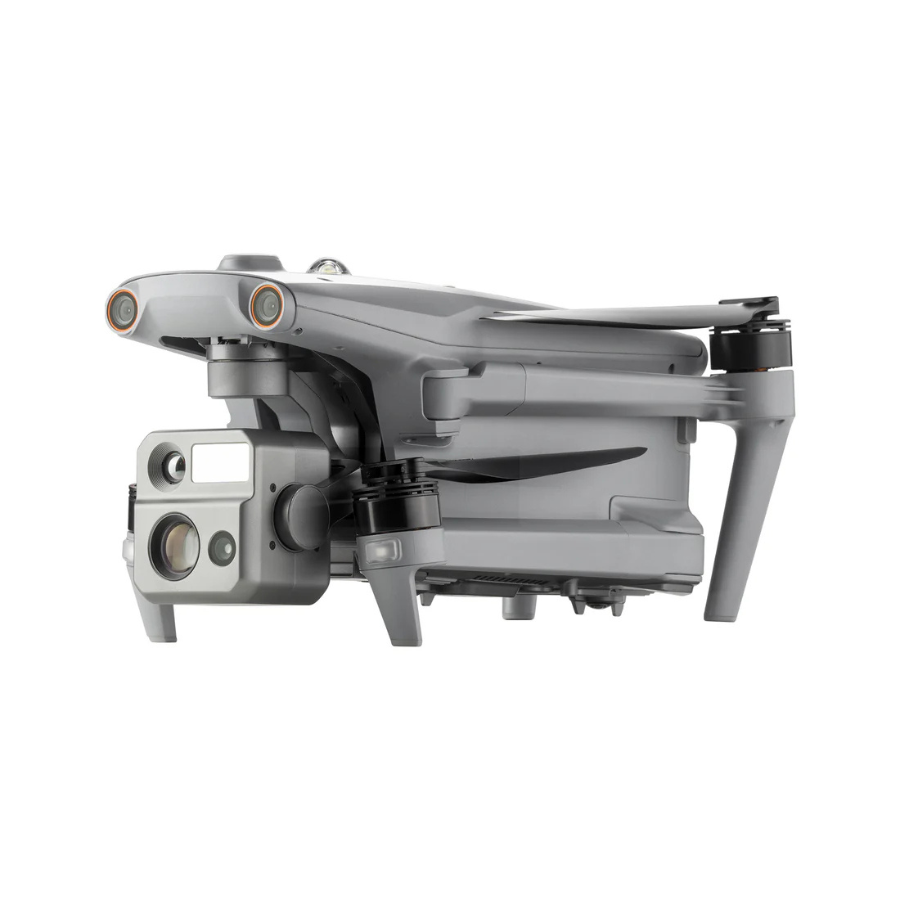

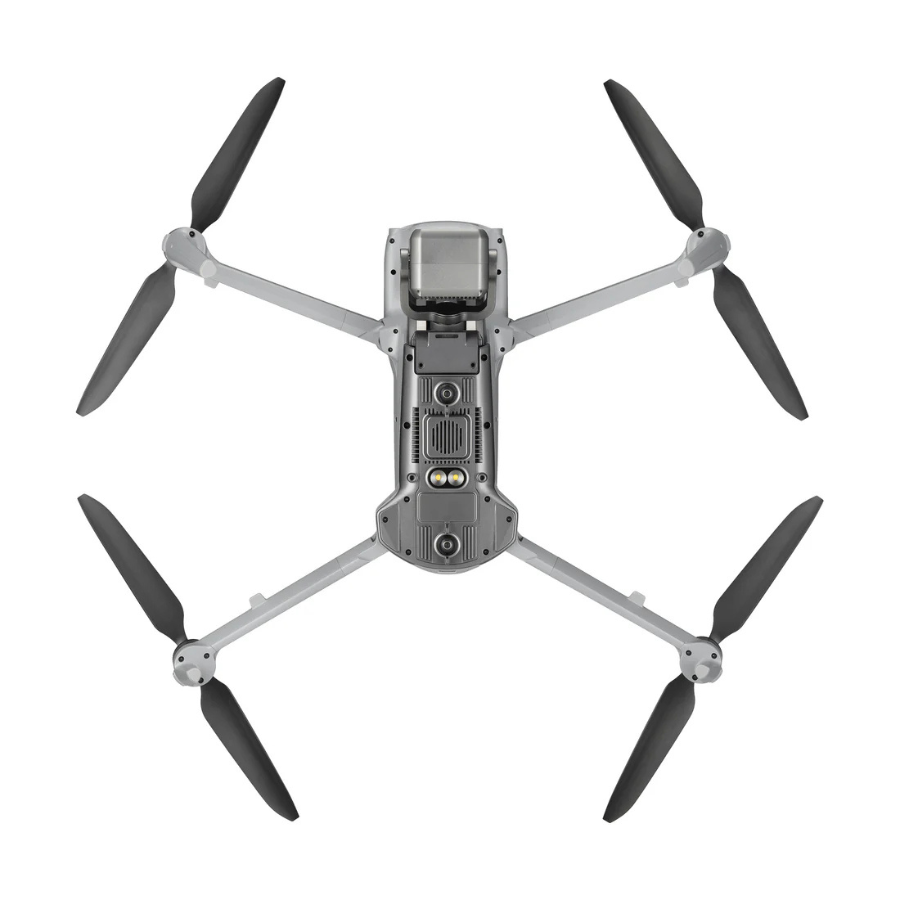

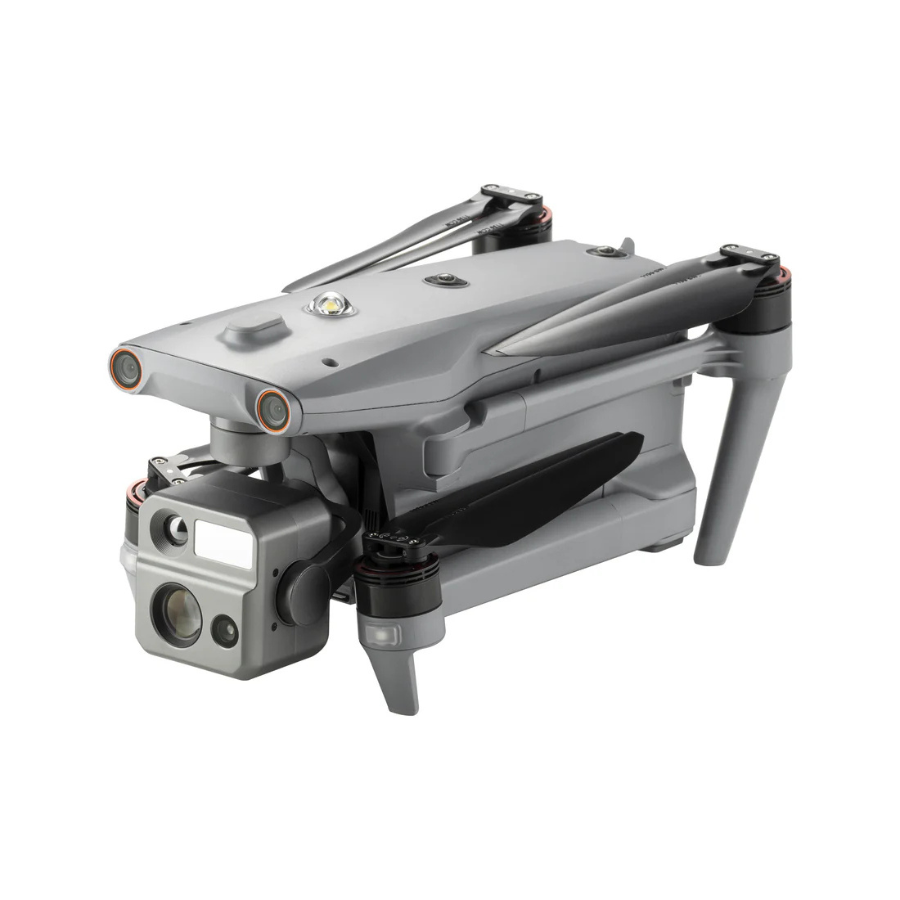

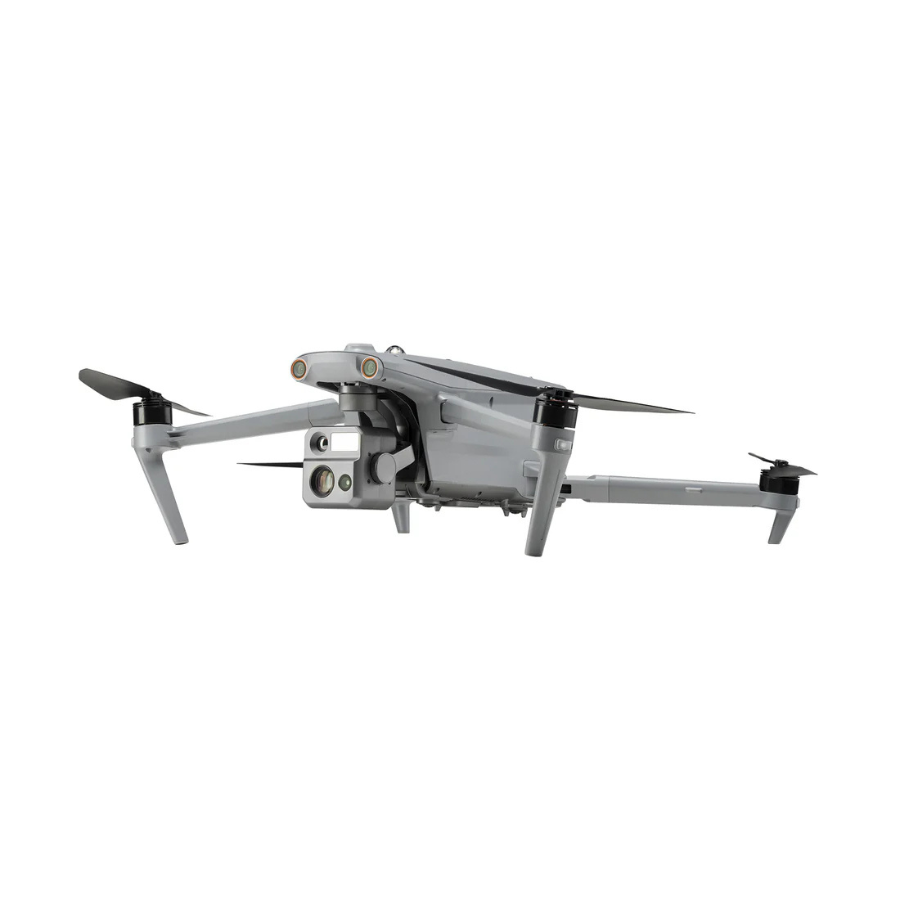

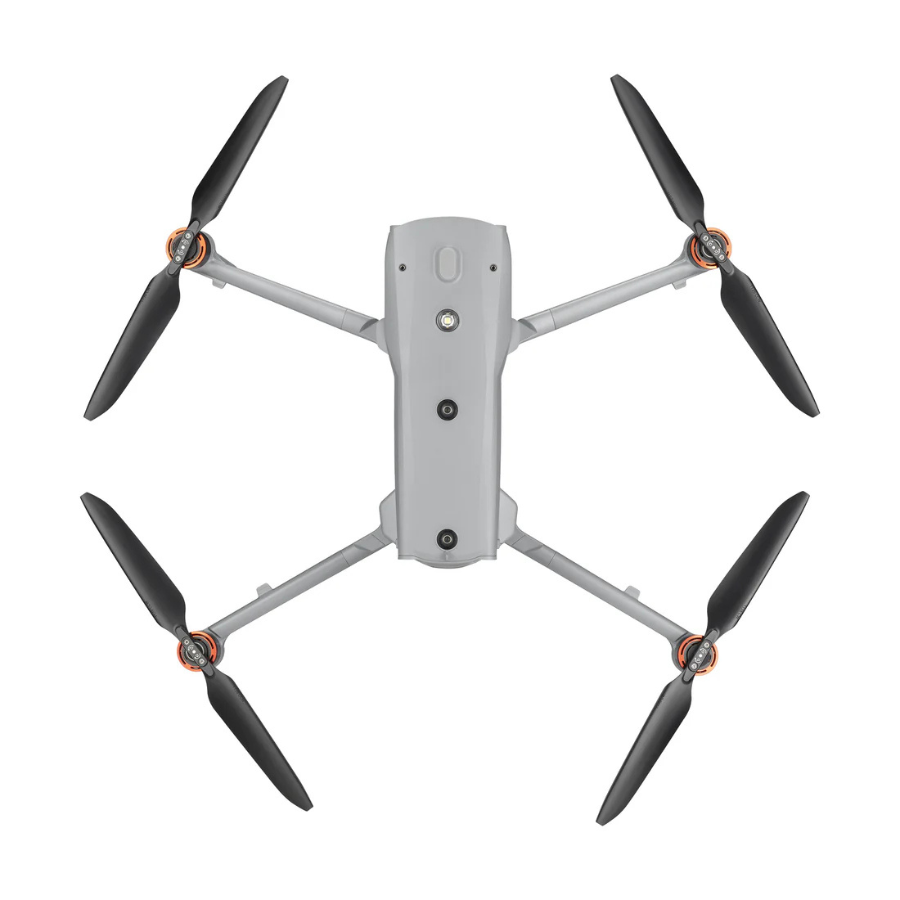

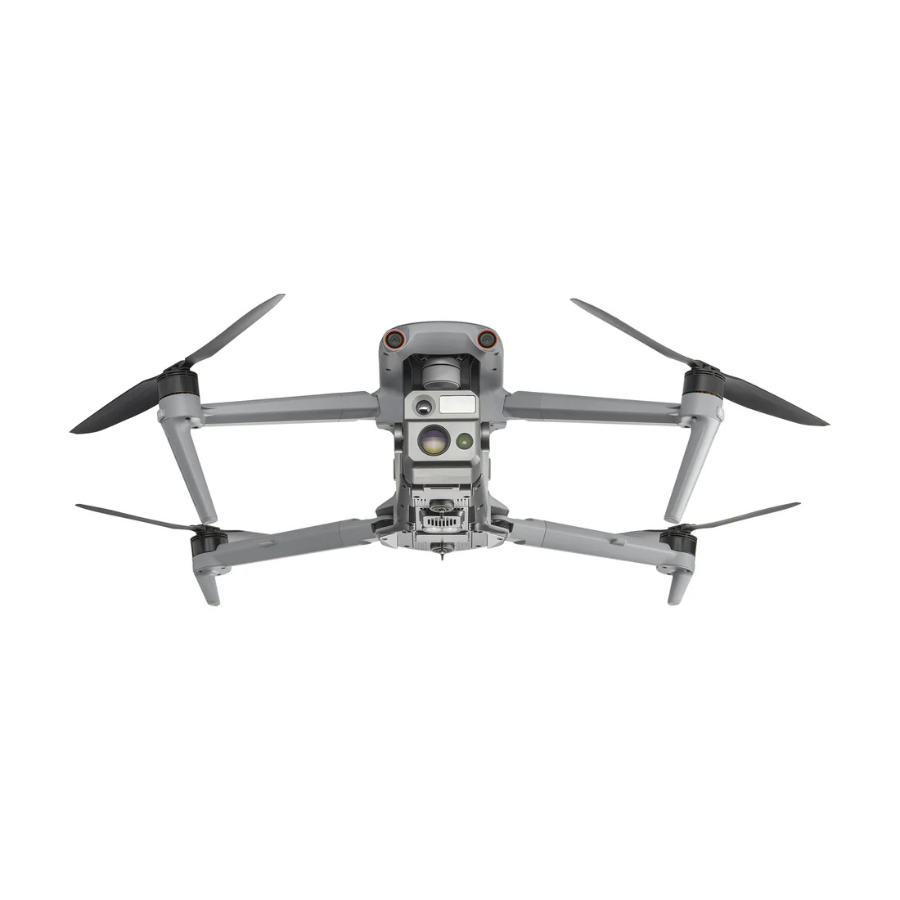

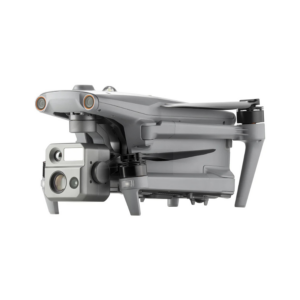

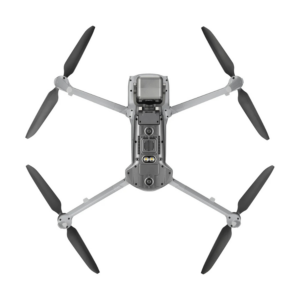

Introducing the Autel Evo Max 4N
The Autel EVO Max 4N is a cutting-edge drone designed for demanding industries such as surveying, inspection, and surveillance. It boasts an impressive 50 MP camera for high-resolution imagery, along with thermal imaging capabilities for detailed analysis in any environment. With a range of up to 20 km, this drone excels in long-distance operations, and its advanced AI features enable precise target tracking and automatic rerouting in challenging surroundings. The robust build and intelligent flight modes ensure stable performance even in adverse conditions, making it an ideal tool for professionals.
Features
| Feature | Details |
|---|---|
| Camera Resolution | 50 MP |
| Video Resolution | 8K/6K |
| Max Transmission Distance | 20 km (FCC) |
| Thermal Imaging | 640×512 |
| Obstacle Avoidance | Yes, with automatic rerouting |
| GNSS | GPS, Galileo, BeiDou, GLONASS |
| Operating Temperature Range | -20℃ to +50℃ |
| Max Tilt Angle | 35° |

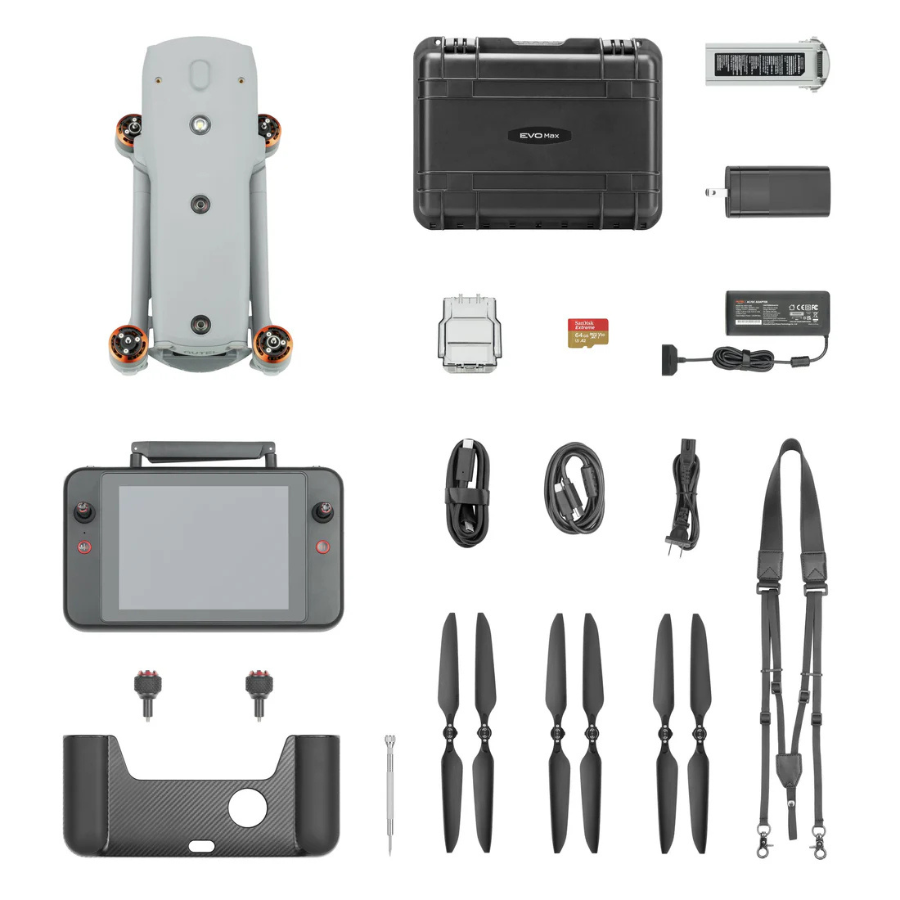

In The Box
Specifications
Gimbal
| Mechanical Range | Pitch: -135° to 45° Roll: -45° to 45° Yaw: -45° to 45° |
| Controllable Range | -90° to 30° |
| Stable system | 3-axis mechanical gimbal (pitch, roll, pan) |
| Max. Control Speed (pitch) | 200º/s |
| Angular Vibration Range | <0.005° |
Starlight Camera
| Sensor | Effective Pixels:2.3M |
| Lens | Focal length: 35mm (equivalent: 41.4mm) Zoom Range:1-8x(synced zoom supported) |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Auto:IOS100-ISO450000 Super Sensitive Mode:Auto IOS100-ISO450000 |
| Electronic Shutter Speed | Photo: 8s ~ 1/8000 Video: 1s ~ 1/8000 |
| Max Photo Size | 8000×6000 |
| Max. Video Resolution | 7680×4320 |
Wide Camera
| Sensor | 1/1.28 CMOS, Effective pixels: 50M, Night mode: 12.50M |
| Lens | DFOV：85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 |
| Electronic Shutter Speed | Photo: 8s ~ 1/8000 Video: 1s ~ 1/8000 |
| Max. Video Resolution | 3840×2160 |
| Photo Size | 8192*6144 4096*3072 |
Thermal Camera
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 61° Aperture: 9.1mm Focus: f/1.0 |
| Infrared Temperature Measurement Accuracy |
26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉ |
| Video Resolution | 640*512 |
| Photo Size | 640*512 |
| Pixel Pitch | 12 um |
| Temperature Measurement Method | Center measurement, pot measurement, Rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot |
Laser Rangefinder
| Measurement Accuracy | ±1m |
| Measuring Range | 1.2km |
Image Transmission
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions. |
| Max Transmission Distance (unobstructed, free of interference) |
20km(FCC), 8km(CE) |
| Independent Networking | 7.9-inch Smart Controller |
| Transmitter Power (EIRP) | 2.4GHz: <33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz: <30dBm(FCC), <23dBm(SRRC/MIC) |
Autonomy
| Non-GPS Hovering and Manual Flight | Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height |
| Non-GPS Return-to-Home | Within 500m flight height, horizontal error of Return-to-Home point < 30cm |
| Automatic Obstacle Rerouting | High Speed Obstacle Rerouting: Flight speed up to 45mph(20m/s) when Min. safety distance to obstacle is 4.9ft (1.5m)
High Precision Obstacle Rerouting: Flight speed could reach 6.7mph(3m/s) when Min. safety distance to obstacle is 1.6ft (0.5m) |
| Multi-target Recognition and Tracking | Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85% |
Millimeter-wave Radar Sensing System
| Frequency | 60Ghz~64Ghz* |
| Size | 1.5*0.55*0.08 in（L*W*H） |
| Weight | 0.07oz (2g) |
| EIRP | 18dBm |
| Sensing Range | Upward: 5.9~787.4in (0.15~20m) Downward: 3.9~4724.4in(0.1~120m) Forward and Backward (Standard/Comfortable): 0.82~98.43ft (0.25~30m) Forward and Backward（Ludicrous）: 1.64~196.85ft (0.5~60m) |
| FOV | Horizontal（6dB）：±60°，Vertical（6dB）：±30° |
| Speed Measurement Range | ± 134mph (60m/s) |
| Speed Measurement Accuracy | ≤1% |
| Max. Target Detection Number | 32 |
Visual Sensing System
| Obstacle Sensing Range | Forward/Upward/Downward/Backward/Sideward: 0.2~50m |
| FOV | Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V) |
General Specifications
| Screen | 7.9 inch, 2000nits max. brightness, 2048*1536 resolution |
| External Battery | Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery |
| Operating Time | 3 hours (Max. brightness) 4.5 hours (50% brightness) |
| Max Transmission Distance (with interference) |
FCC: 20km CE: 8km |
| IP Rating | IP43 |
| Storage | 128G |
| GNSS | GPS+GLONASS+Galileo+Beidou+NavIC+QZSS |
| Operating Temperature | -20℃ to 40℃ |
WIFI
| Protocol | WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi |
| Operating Frequency[ | 2.400 – 2.4835 GHz； 5.150 – 5.250GHz； 5.725 ‒ 5.850 GHz |
| Transmitter Power (EIRP) | 2.400 – 2.4835 GHz FCC/CE:≤20dBm 5.150 – 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm |
Battery
| Capacity | 8070mAh |
| Voltage | 14.88V |
| Battery Type | LiPo 4S |
| Energy | 120wh |
| Net Weight | 520g |
| Charging Temperature | 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Hot Swap | Support |
