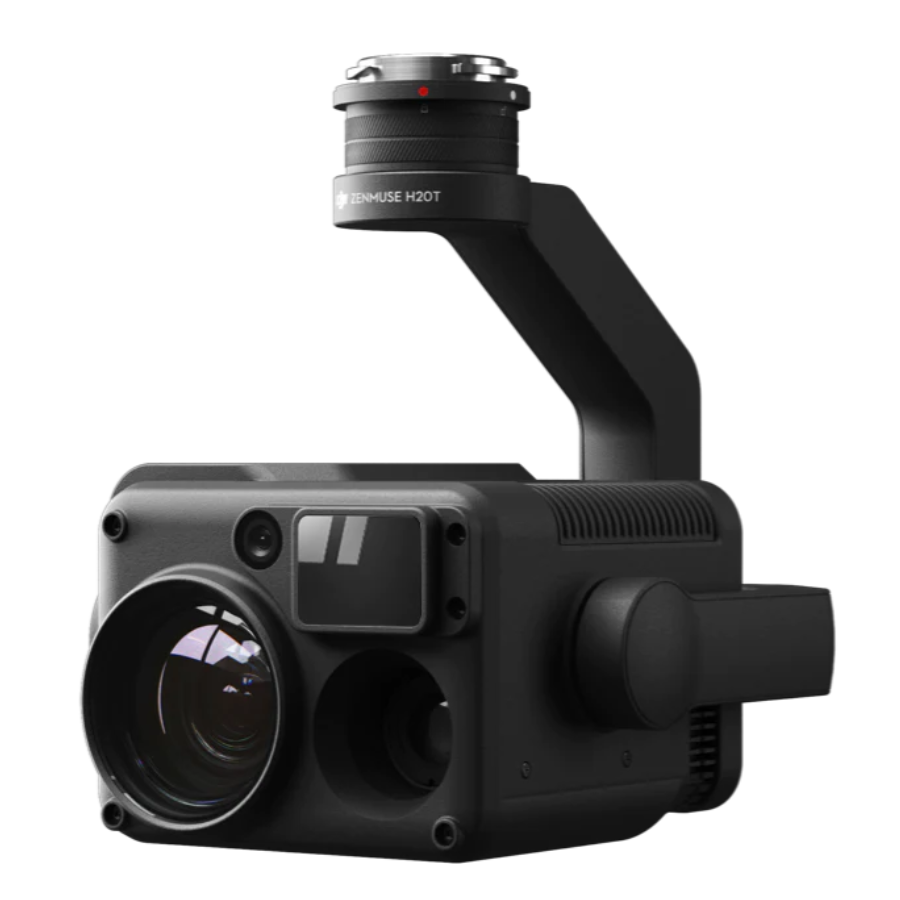

DJI Zenmuse H20T

The DJI Zenmuse H20T is DJI’s first hybrid sensor solution. The “T” model, compared to the regular Zenmuse H20, includes a fourth sensor — a 640×512 thermal camera. In addition to the thermal sensor, the H20T features the same sensors as the H20, which consist of a 20 MP zoom camera with a 23× hybrid optical zoom, a 12 MP wide camera with a 1/2.3″ CMOS sensor, and a laser rangefinder with a range of up to 1,200 meters. The H20T is the ultimate match for the DJI Matrice 300 RTK. This quadruple sensor solution brings a whole new meaning to efficiency and its fully integrated design provides unprecedented aerial capabilities to a wide range of unmanned applications.

The DJI Zenmuse H20T is a state-of-the-art quad-sensor payload designed to elevate the capabilities of DJI’s Matrice 300 RTK, making it an indispensable tool for a wide range of professional applications, from public safety to infrastructure inspection. Here’s a detailed look at its features:

20 MP Zoom Camera: Equipped with a high-resolution 20MP sensor and a 23x hybrid optical zoom, it captures detailed images from a distance, making it perfect for critical inspections and surveillance.

Radiometric Thermal Camera: Features a radiometric thermal camera that measures temperatures in real-time, offering valuable data for firefighting, search and rescue, and industrial inspections.

Wide Camera: Boasts a 12 MP wide camera with a 82.9° DFOV, ensuring broad coverage for comprehensive scene capture and situational awareness.

Laser Rangefinder: Includes a precise laser rangefinder with a range of up to 1,200 meters, enabling accurate distance measurements, essential for mapping, surveying, and tactical operations.

Night Scene Mode: The H20T’s zoom camera supports Night Scene mode for enhanced imaging in low-light conditions, critical for night operations and surveillance.

Gimbal Rotation: The gimbal offers a controllable yaw range of ±320°, providing wide angular flexibility for capturing images and data across demanding mission scenarios.

One Click Capture: Simultaneously saves video or photos from all three imaging sensors — zoom, wide, and thermal — in a single action, enhancing the operator’s ability to understand and react to complex environments and situations.

IP44 Rating: Durable and weather-resistant, it’s designed to perform in challenging weather conditions, including rain and dust, ensuring reliability when it matters most.

Point to Aim: Double-click on the wide or thermal camera view and the system automatically moves the gimbal to focus on any point of interest, simplifying complex tasks and enhancing operational efficiency.

High-Res Grid Photo: Frame an area of interest in the wide camera view and the zoom camera automatically captures a set of 20 MP images of the area, enabling detailed aerial documentation and scene coverage.

Detachable Mount: Designed for easy attachment and detachment from the Matrice 300 RTK, facilitating rapid deployment and versatility across various missions.

Timestamp with GPS: Every capture includes GPS coordinates, date, and time, protecting data integrity and ensuring precise logging during critical missions.

IP44 Rated Build: Built to IP44 standards for professional field use, ensuring longevity and reliable performance across a wide range of environmental conditions.

The DJI Zenmuse H20T combines advanced imaging and sensing technologies, offering professionals unparalleled aerial capabilities. Whether for critical public safety missions, detailed infrastructure inspections, or environmental monitoring, the H20T enhances decision-making, operational efficiency, and safety.

“H” For Hybrid

Multi-sensor payloads bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

The DJI Zenmuse H20T is a highly versatile and powerful quad-sensor payload that significantly enhances the capabilities of drones for a wide array of professional applications. Here’s how it proves to be helpful across different sectors:

Thermal Imaging: The radiometric thermal camera can detect heat signatures, crucial for finding people in search and rescue operations, especially in challenging conditions or at night.

Zoom Camera: Allows for detailed inspections from a safe distance, enabling teams to assess situations without putting personnel at risk.

Laser Rangefinder: Provides accurate distance measurements, essential for planning rescue missions or tactical operations.

High-Resolution Zoom: Facilitates detailed inspections of critical infrastructure, such as bridges, power lines, and wind turbines, identifying potential issues without the need for scaffolding or helicopters.

Thermal Imaging: Detects heat anomalies in equipment, preventing potential failures by identifying overheating components or electrical issues.

Wide Camera and Zoom: Offers broad overviews and detailed inspections of environmental projects, wildlife populations, or natural disaster impacts, aiding in conservation efforts and damage assessment.

Thermal Imaging: Useful for monitoring forest fires, wildlife, or volcanic activity, providing data that can be used to protect ecosystems and communities.

Agricultural Inspections: The H20T’s thermal and zoom cameras can support aerial inspections for assessing crop conditions and detecting irrigation issues when used alongside analytical software.

High-Res Grid Photo: The zoom camera automatically captures a set of 20 MP images across any area framed in the wide camera view, providing detailed aerial documentation for construction sites, real estate, and planning purposes.

Night Scene Mode and Thermal Imaging: The zoom camera’s Night Scene mode and thermal imaging provide enhanced imagery in low-light conditions and detect heat signatures, supporting security patrols and surveillance of critical assets or perimeter defenses.

One Click Capture: Simultaneously saves video or photos from all three imaging sensors — zoom, wide, and thermal — in a single action, improving situational awareness and decision-making.

Point to Aim: Double-click on the wide or thermal camera view and the gimbal automatically slews to focus on any point of interest, streamlining operations and enhancing focus on critical aspects.

Durability and Weather Resistance: IP44 rated and operating across −20°C to +50°C, the H20T ensures reliable operation in adverse weather conditions, increasing operational days and flexibility.

The DJI Zenmuse H20T is indispensable for professionals seeking to leverage drone technology for enhanced decision-making, efficiency, and safety in their operations. Its comprehensive suite of sensors and features makes it a powerful tool for a broad spectrum of applications, providing critical information and insights that are otherwise challenging to obtain.
